2400 Replacement Air Bag
This is a single airbag. For a pair, make sure you purchase Quantity: 2.
This is 1x brand new #2400 air bag with rings.
Part #2400.
This is a double convoluted bag but is is a bit shorter and narrower than our conventional 2500 double convoluted bags.
– Maybe you are going on a big trip and want to carry a spare.
– Maybe you have an old kit (these kits have been around for about 15 years) and you want to replace your old bags with fresh new ones.
– Maybe you have a damaged bag.
Often a customer discovers there vehicle sits lower than factory but that’s how they like it – this bag is an easy fix if their air bag kit sits too tall and bump stops hard.

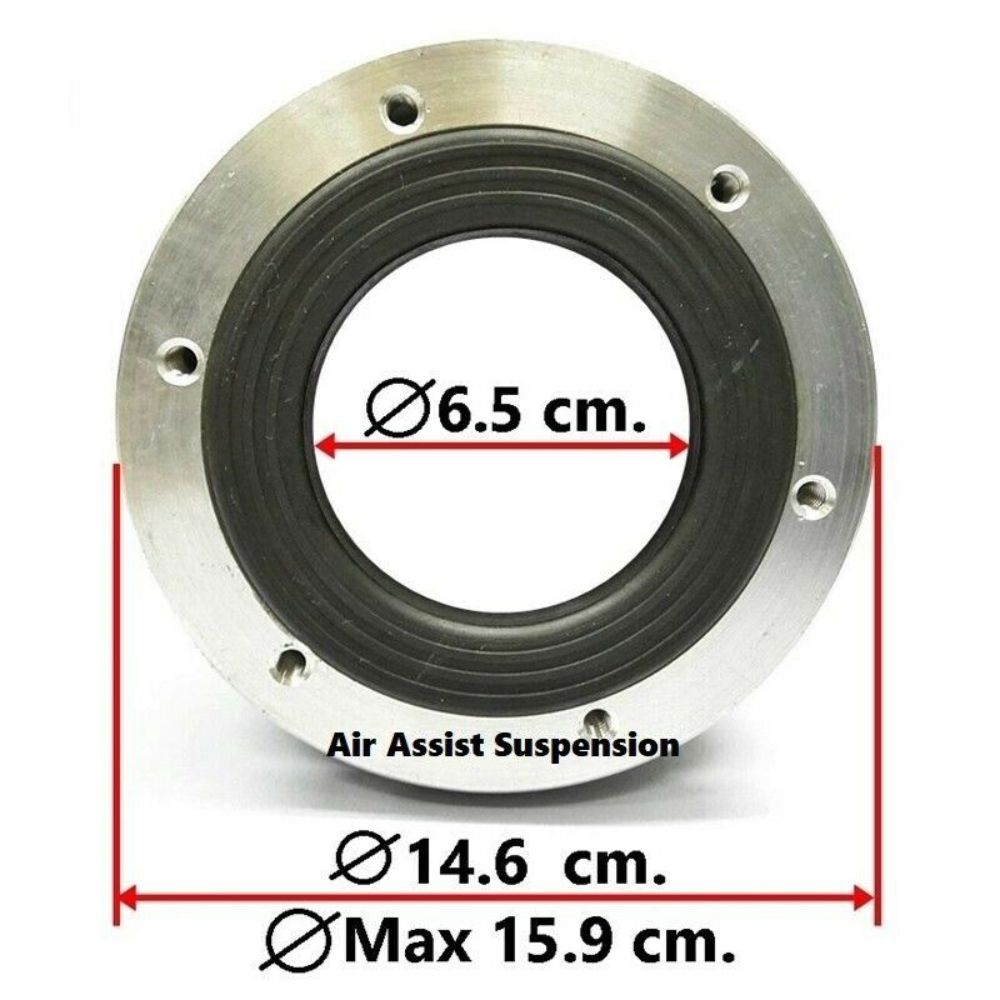

The bag comes with 2 new alloy rings as pictured. Although a slightly smaller bag the hole pattern in these rings still suit all double and triple bag 2500 applications by Air Assist, BOSS and Thor.
Typically this bag is used when space is an issue. Being a bit shorter and a bit narrower it fits where our bigger bags don’t, such as in lowered cars.
There are no end plates – we assume with these bags you already have the end plates or mounting kit and almost always those parts don’t need replacing. We can however provide end plates or other brackets upon request.
Specifications :
- Fully Compressed – 48mm
- Max Diameter- 150mm
- Max height – 175mm
- Max working pressure 0-160psi
- Test pressure – 480psi
- Burst pressure – 1000psi
Additional information
Weight | 1 kg |
---|---|
Dimensions | 15 × 15 × 15 cm |
