2500 Replacement Air Bag

$165.00

Brand -

2500 Replacement Air Bag

This is a single airbag. For a pair, make sure you purchase Quantity: 2.

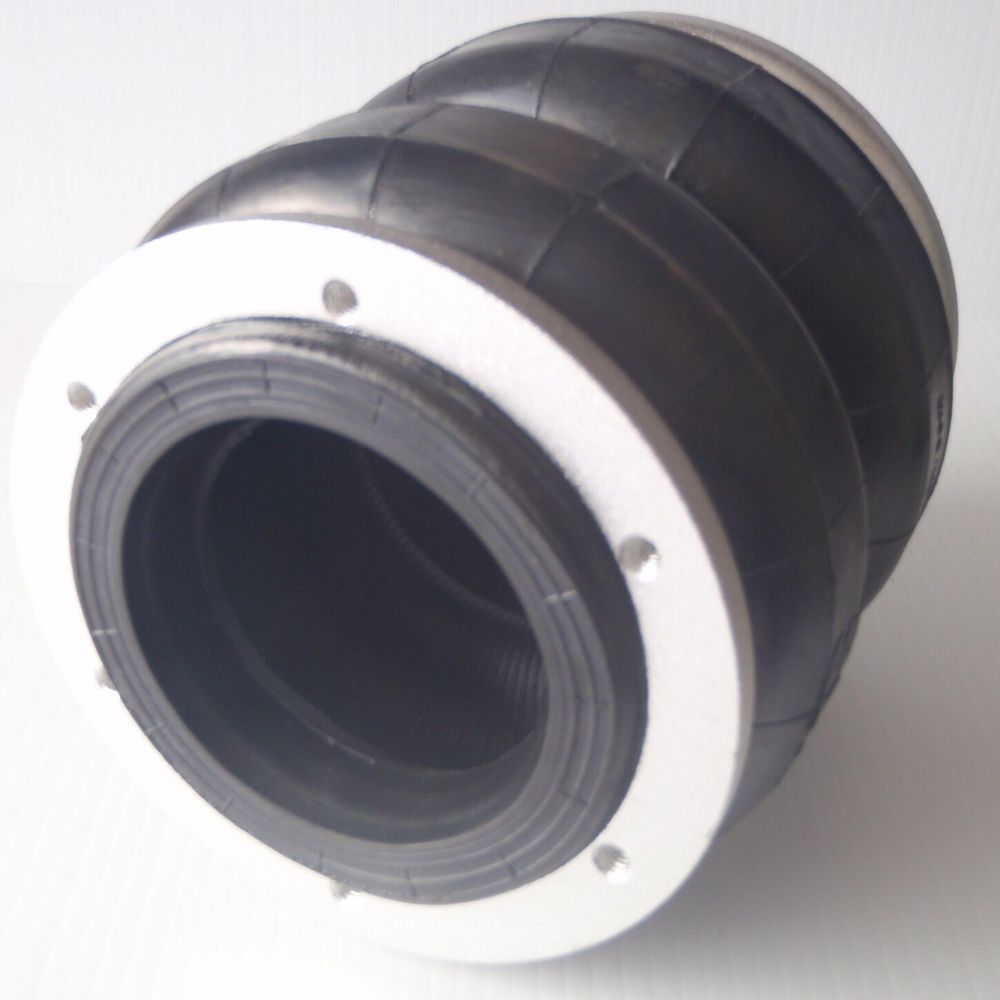

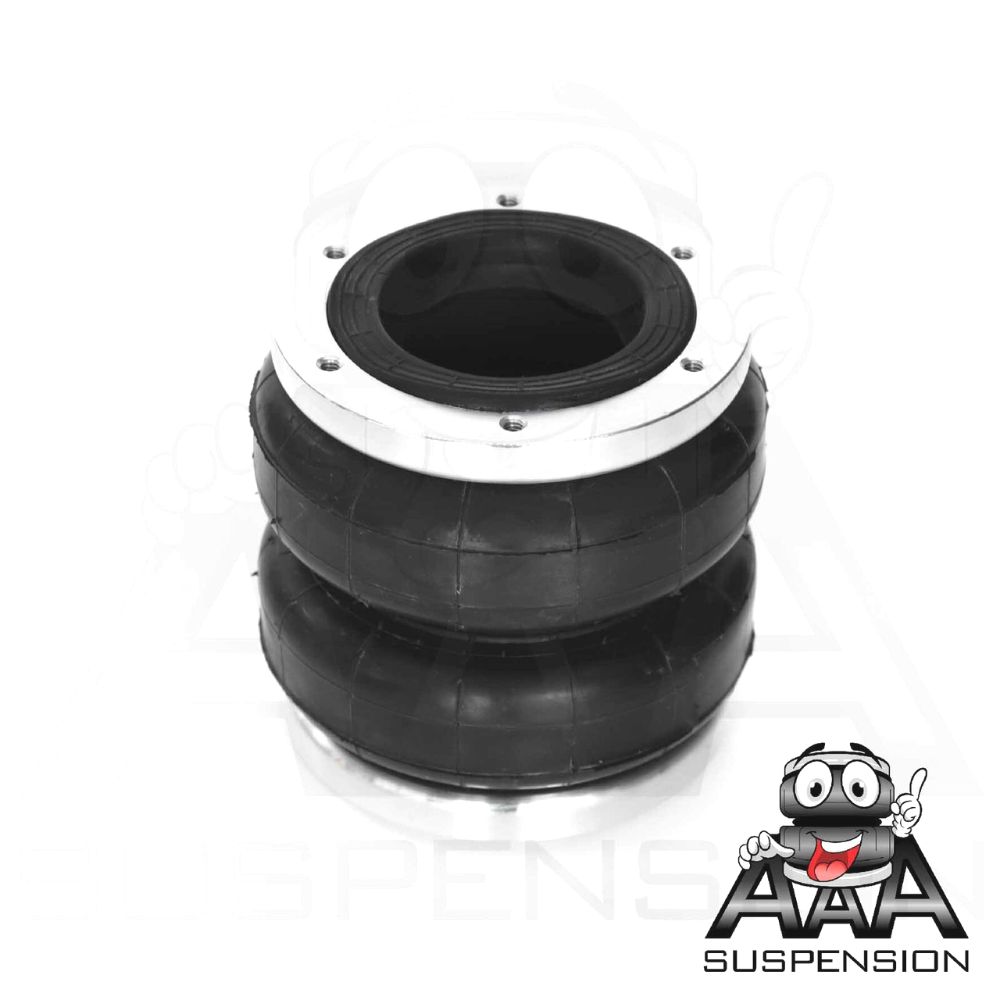

This is 1x brand new #2500 air bag with rings.
Part #2500.
– Maybe you are going on a big trip and want to carry a spare.
– Maybe you have an old kit (these kits have been around for about 15 years) and you want to replace your old bags with fresh new ones.
– Maybe you have a damaged bag.

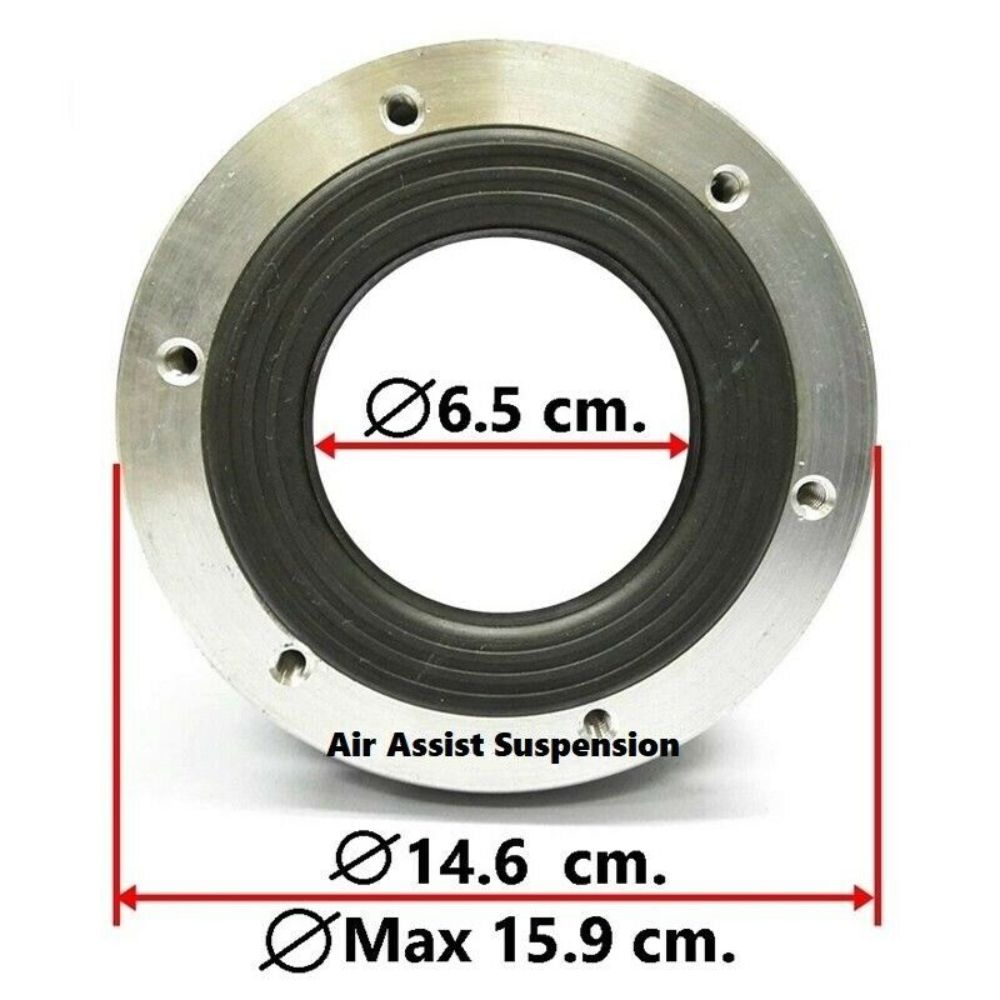

The bag comes with 2 new alloy rings as pictured. Although a slightly smaller bag the hole pattern in these rings still suit all double and triple bag 2500 applications by Air Assist, BOSS and Thor.

There are no end plates – we assume with these bags you already have the end plates or mounting kit and almost always those parts don’t need replacing. We can however provide end plates or other brackets upon request.

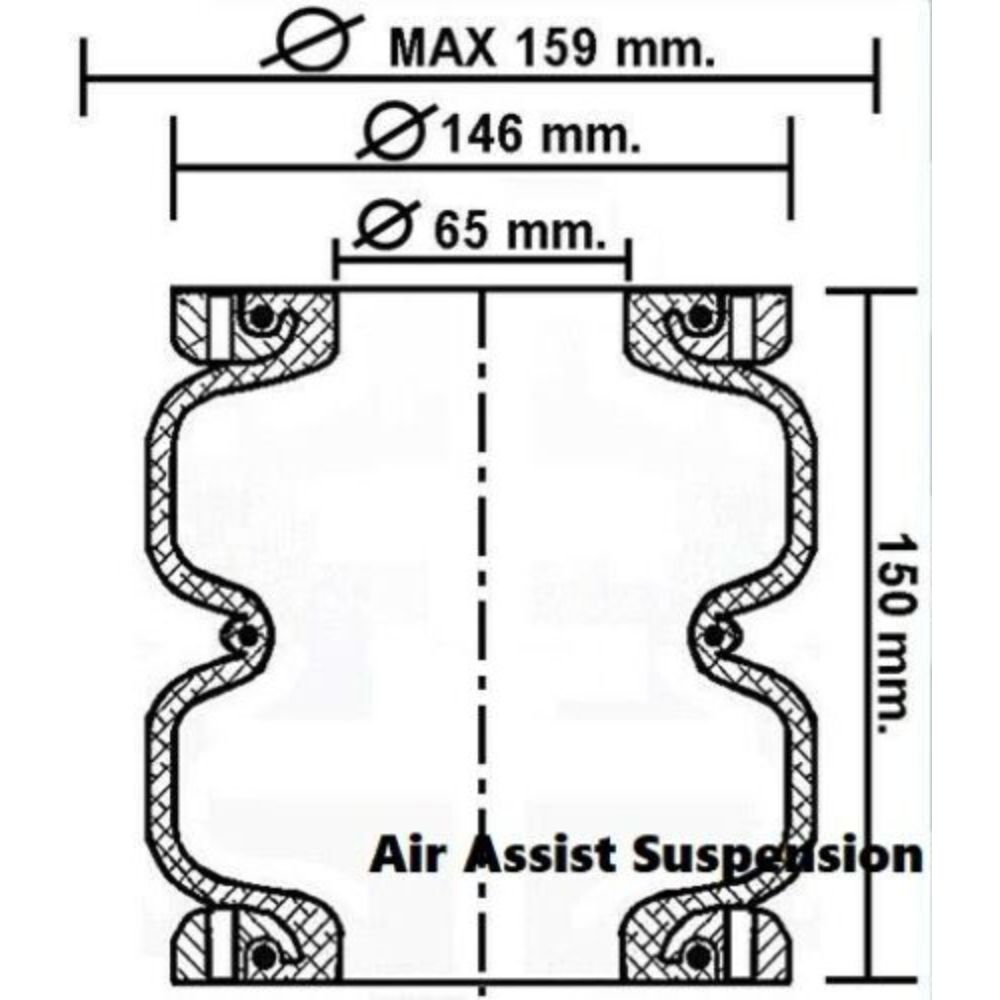

Specifications :

  • Fully Compressed – 53mm (65mm with 6mm ends fitted)
  • Max Diameter- 155mm (widest when fully compressed)
  • Max height – 210mm
  • Max working pressure 0-160psi
  • Test pressure – 480psi
  • Burst pressure – 1000psi

Additional information

Weight 1 kg
Dimensions 15 × 15 × 15 cm
