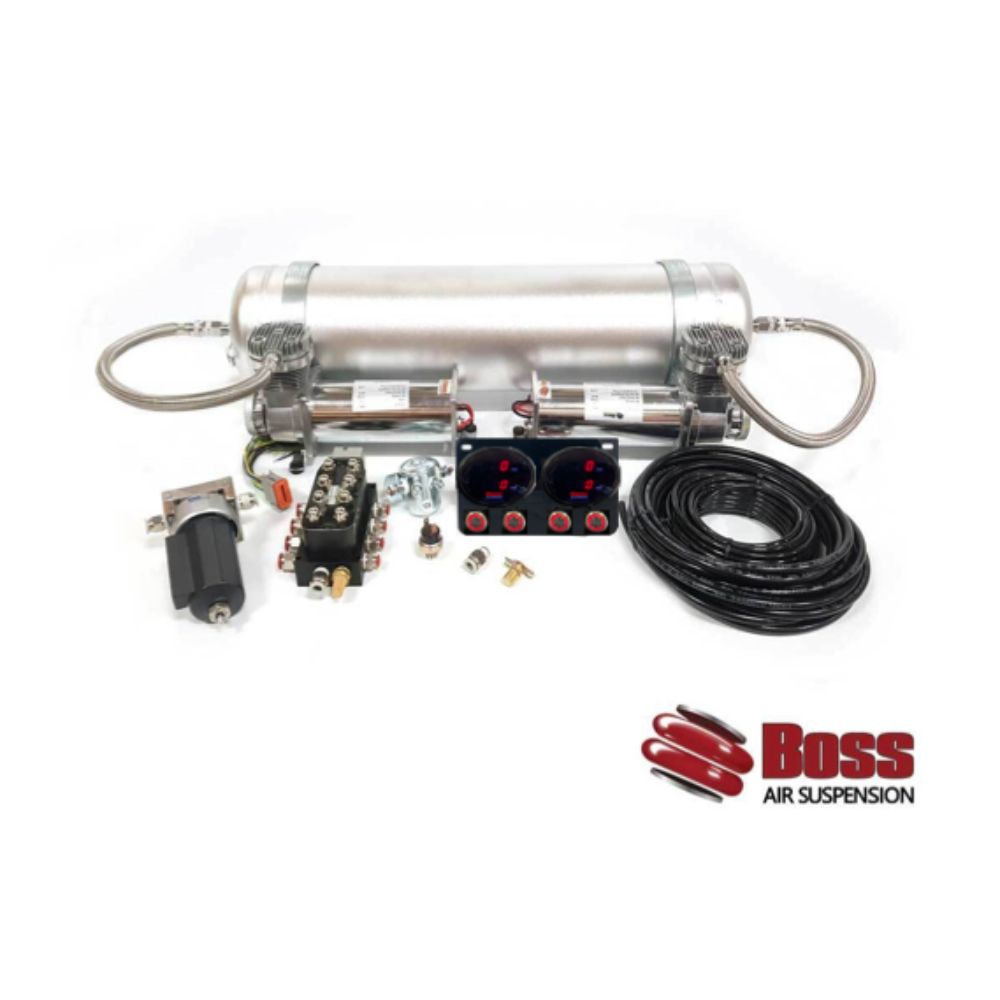

Airmax FBSS Air Management Kit Digital 4 Button
The BOSS Airmax Digital 4 Button Air Management System setup is designed to work with and support Air Ride Suspension setups for your vehicle using your own brackets,links and air bags, or using one of our air suspension systems like the 58-64 Impala FBSS kit
Using our 8 valve block along with 2 of our 1.8cfm PX06 12 volt compressor and 5 Gallon 16 litre 5 port light weight aluminium Air Tank
Available in 1/4″ or 3/8″ line
Everything included for an easy to setup complete air management kit.
Please note that this kit does not include Bags, Metal Brackets or links etc.
Button Operation Below:
- x1 Button for Both Front bags Up,x1 Button for Both Front Bags Down
- x1 Button for Both Rear bags up, x1 Button for Both Rear bags down
- ( Do not control individual bags Up or Down, Only in Pairs )
Boss Airmax Air Management kit includes the following - 2 x BOSS COMPRESSOR PX06
- 2 x 3/8″ CHECK VALVE
- 2 x TEFLON BRAIDED HEAT RESISTANT HOSE 1/2FM FLARE X 5/8 MALE
- 1 x 100% DUTY RELAY/SOLENOID
- 1 x 110-150PSI PRESSURE SWITCH
- 1 x 5 GAL 15LTR 5 PORT PORT ALLOY TANK
- 1 x 1/4″ DRAIN COCK FOR AIR TANK
- 1 x 8 VALVE MANIFOLD BLOCK
- 1 x WATER TRAP & BRACKET
- 1 x CONE SILENCER 3/8″
- 1 x TWIN GAUGE PANEL
- 4 x MOMENTARY 12V LED BUTTONS
- 2 x 200PSI BOSS DUAL DIGITAL GAUGE
- 4 x 3/8 x 1/4 REDUCING BUSH
- Instructions
1/4″ Kit
- 1 x 1/4″ TUBE 1/4NPT ELBOW
- 5 x 1/4 TUBE X 1/4NPT PUSH CONNECT FITTINGS
- 16MTRS 1/4 X 170 J844 BRAID RED AIR LINE
3/8″ Kit
- 1 x 3/8″ TUBE 1/4NPT ELBOW
- 5 x 3/8TUBE X 1/4NPT PUSH CONNECT FITTINGS
- 16MTRS 3/8 X 170 J844 BRAID BLK AIR LINE
Additional information
Weight | 25 kg |
---|---|
Dimensions | 35 × 35 × 35 cm |
