STEDI TYPE-X PRO LED Driving Lights Pair – LEDTYPE-X-PRO

STEDI TYPE-X PRO LED Driving Lights Pair - LEDTYPE-X-PRO

WHAT'S INCLUDED

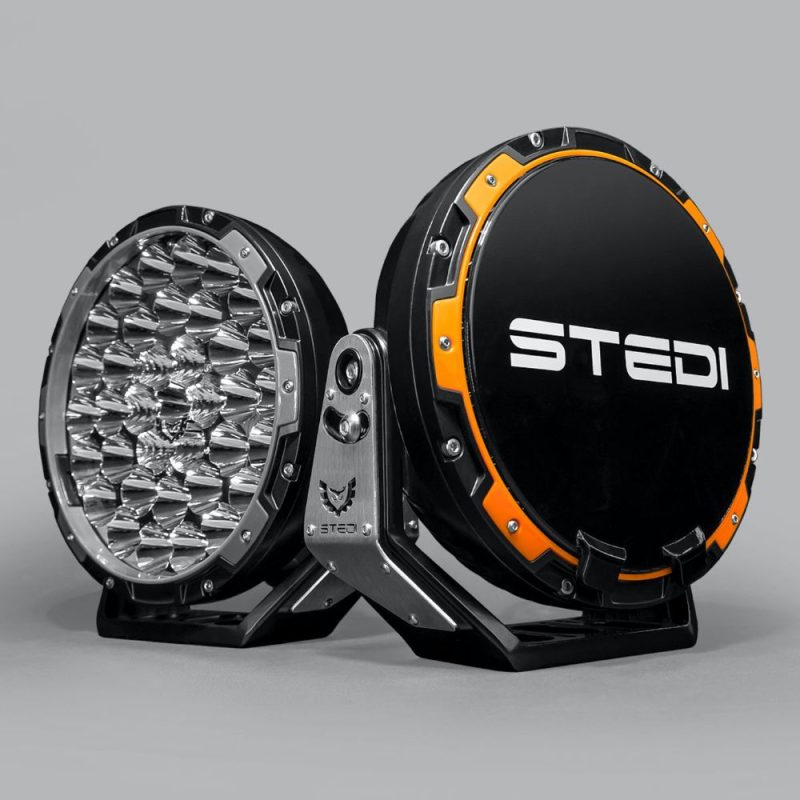

• 2 x STEDI Type-X PRO LED Driving Lights

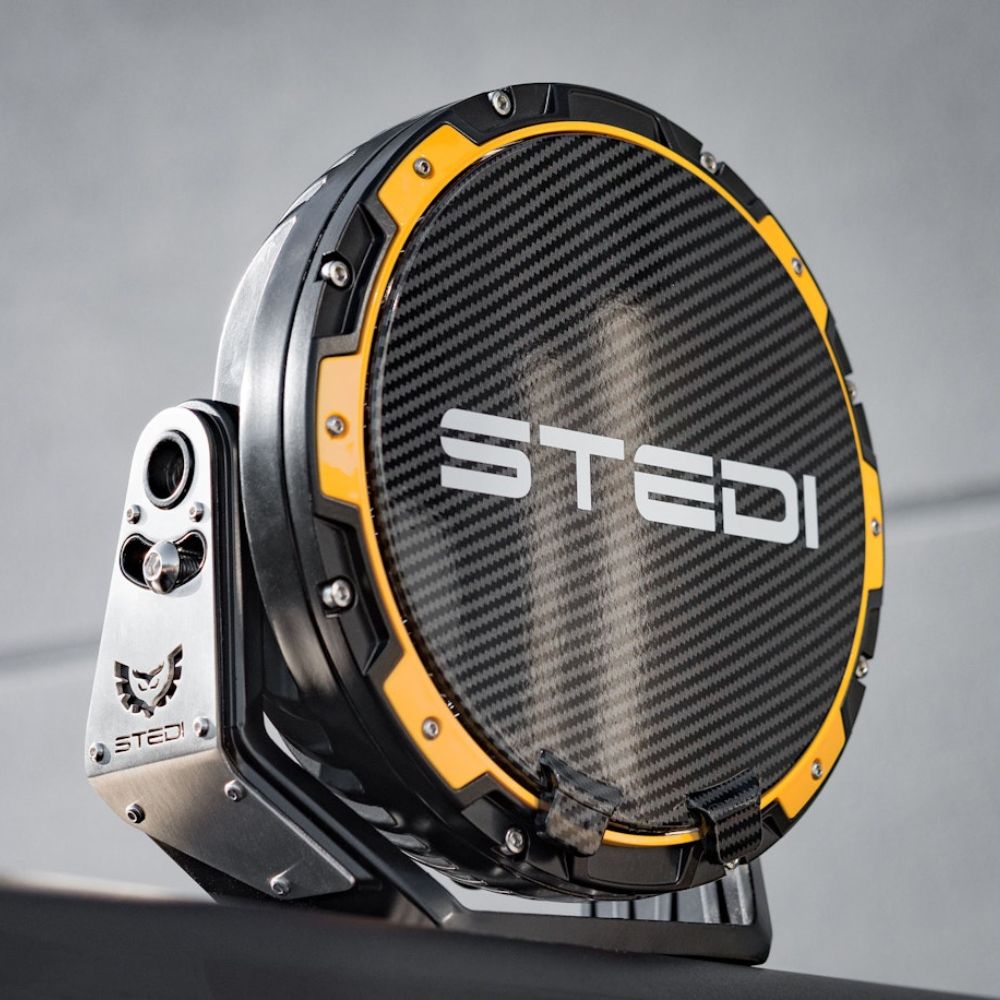

• 2 x Protective STEDI Black Out Covers
• 2 x Grey Colour Rings

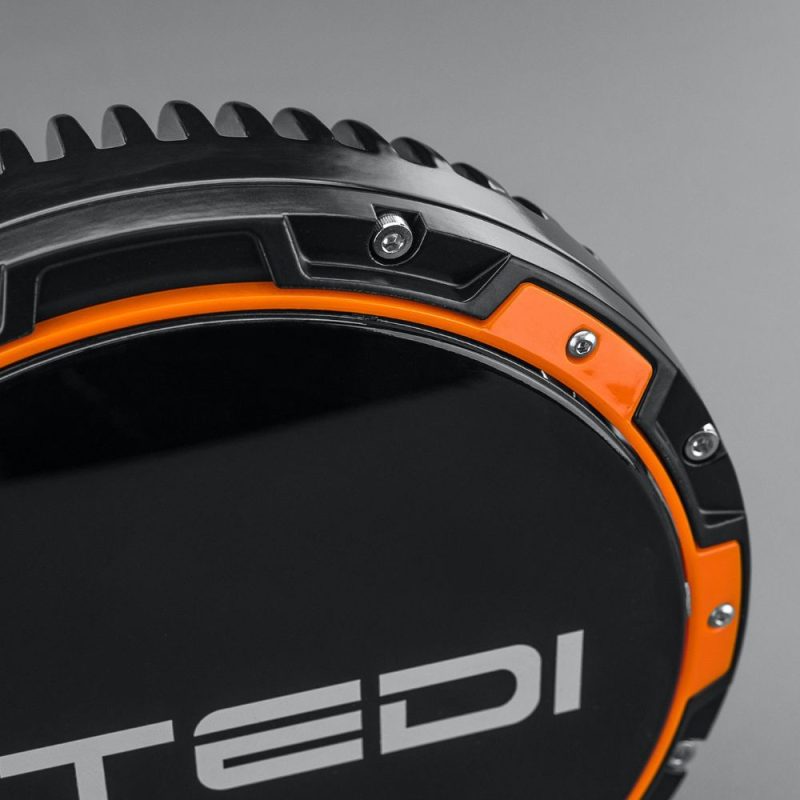

• 2 x Orange Coloured Rings
• 1 x Smart High Beam Wiring Harness DTP-2 Sealed Connectors, H4, HB3 adapter plugs to high beam. 60A Relay, Fuse, Switch
• Complete Stainless Steel fastener kit.
• Wiring & Fitting Instructions

SPECIFICATIONS

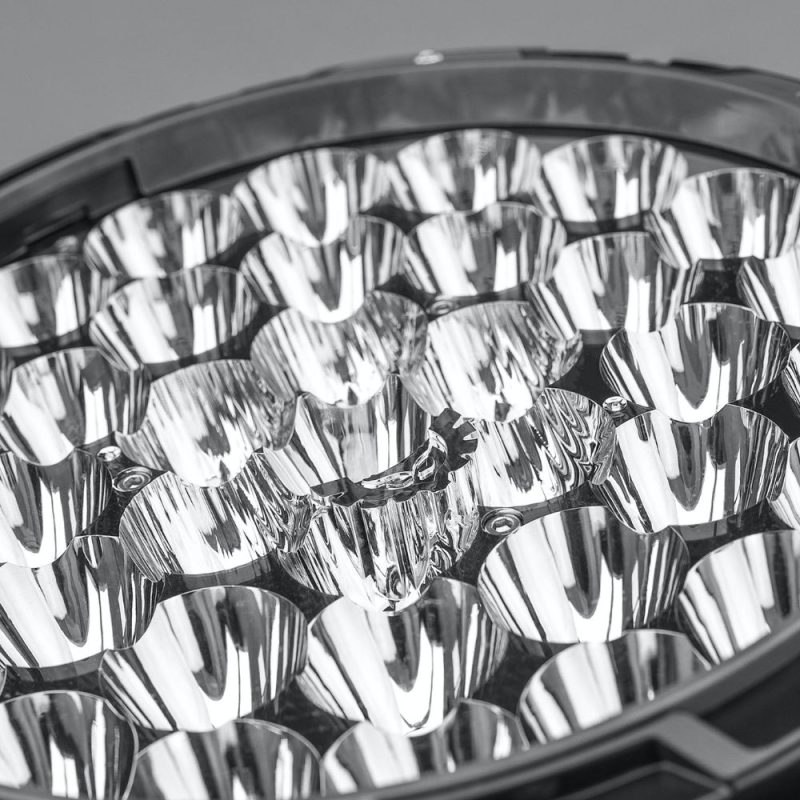

• LED- 37 x Oslon High-Flux LED
• RAW LUMENS - 26,270 (Pair)
• TESTED LUMENS - 15,870 (Pair)
• AMP DRAW - 10.4A @ 13.2v (each)
• POWER DRAW - 137W
• CANDELA - 1,334,025cd
• BEAM PATTERN - 6 x 50° Spread 31 x 5.8° Pencil Beam
• INGRESS PROTECTION - IP68 | Submersible up to 3m
• COLOUR TEMP (CCT) - 5700K
• VOLTAGE COMPATIBILITY - 12v & 24v
• LUMEN MAINTENANCE - 50,000 LM-80
• WEIGHT - 2.860kg (each)
• OPERATING TEMPERATURE - -40°C to 60°C
• SKU: TYPEX-EVO-PAIR

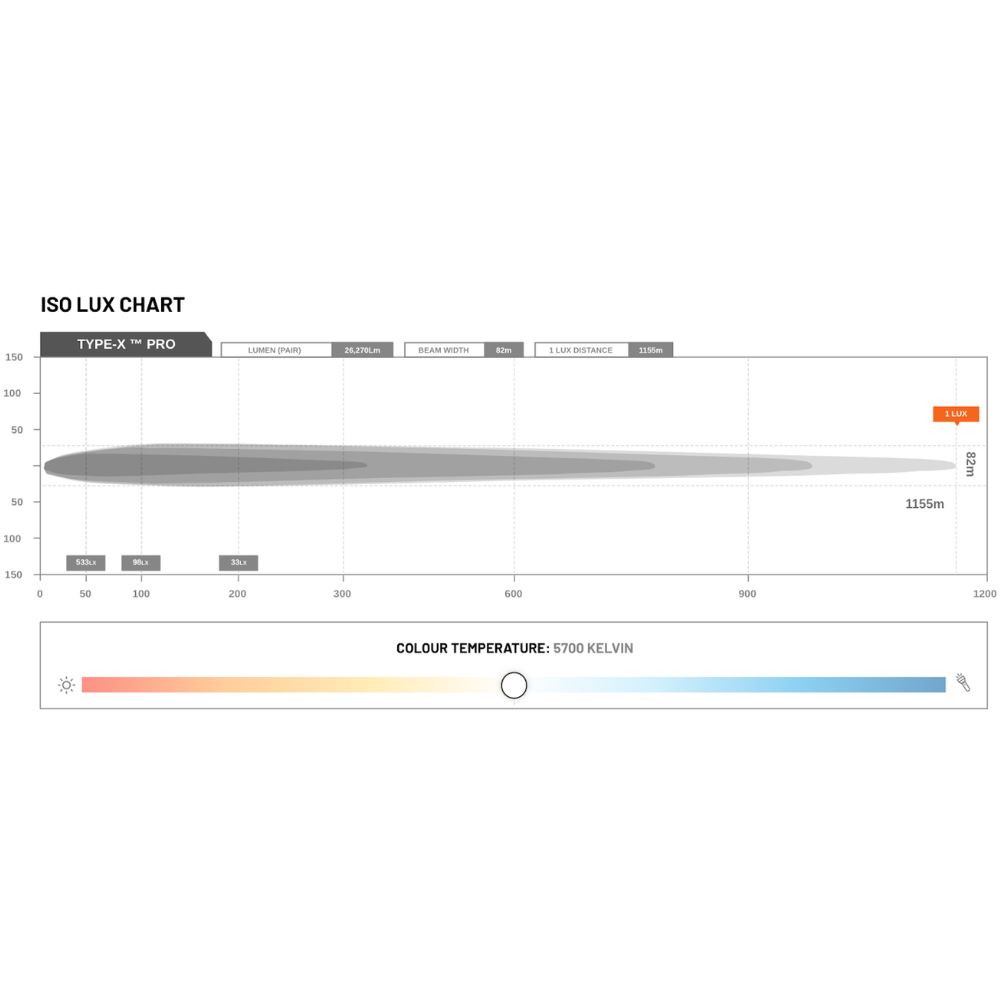

PHOTOMETRIC DATA

• 10 m - 13,340 Lx
• 50 m - 533 Lx
• 200 m - 33 Lx
• 300 m - 14 Lx
• 400 m - 8 Lx
• 1,000 m - 1.3 Lx
• 1,155 m - 1 Lx
