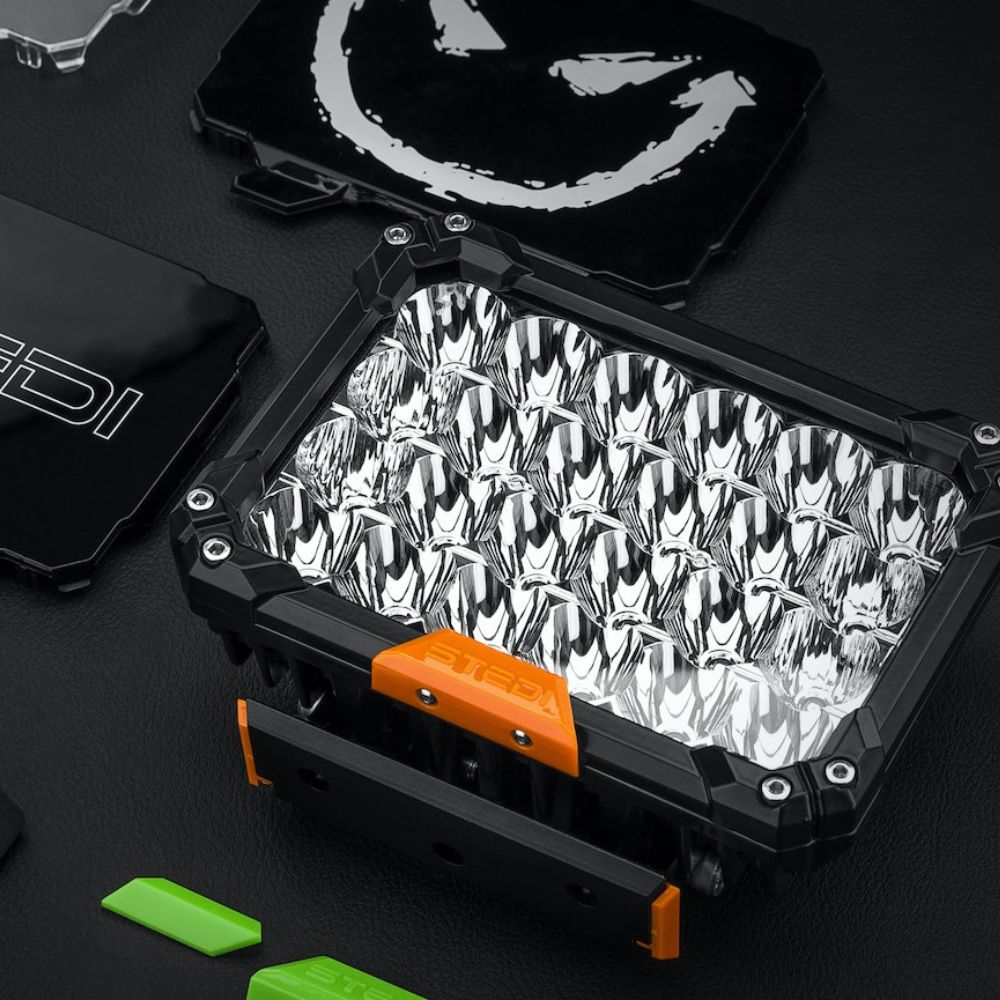

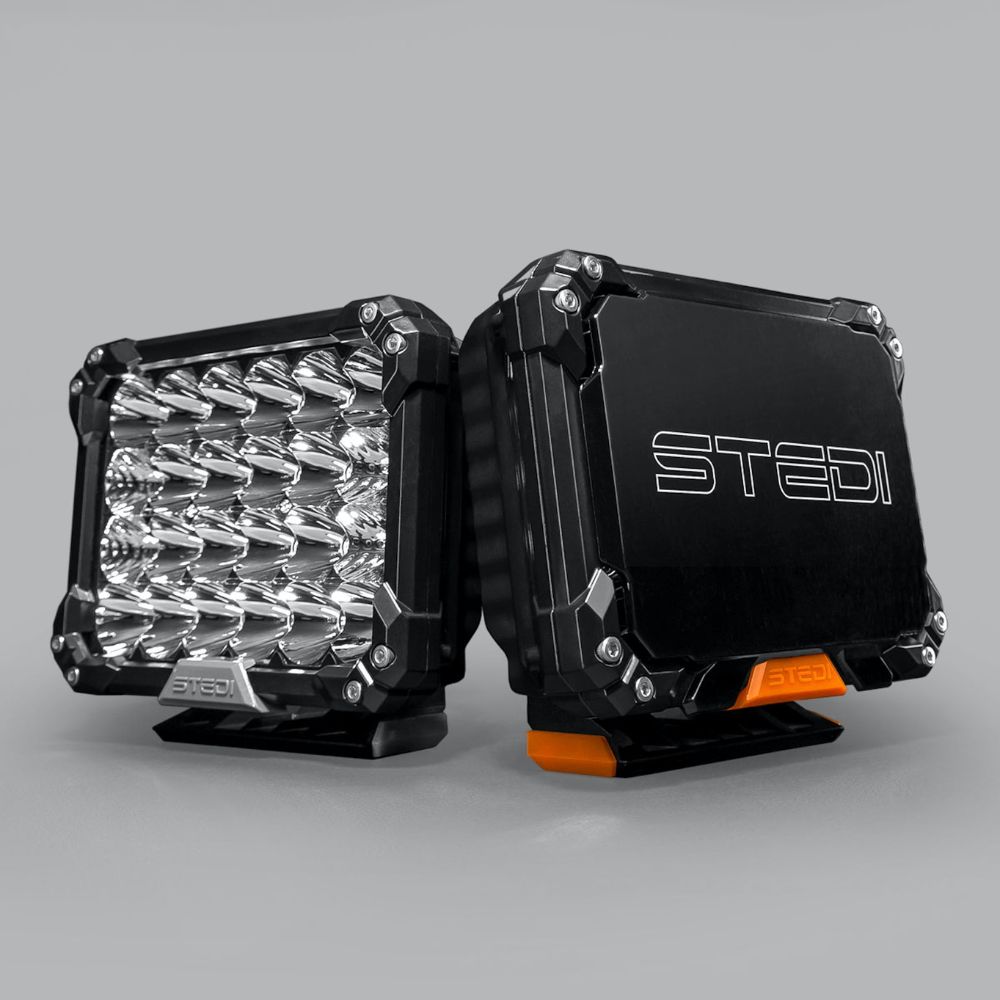

STEDI Quad Pro LED Driving Lights - LEDQUAD-PRO
WHAT'S INCLUDED
- 2 x QUAD Pro LED Spot Lights
- 2 x STENCIL Black Out Covers
- 1 x Set Orange Colour Caps (fitted)
- 1 x Set Grey Colour Caps
- Easy Fit High Beam Wiring Harness
- H4 & HB3 adapters to High Beam
- Installation Manual
- Stainless fitting hardware
Additional covers available here and customise your light with different coloured caps are available here
SPECIFICATIONS

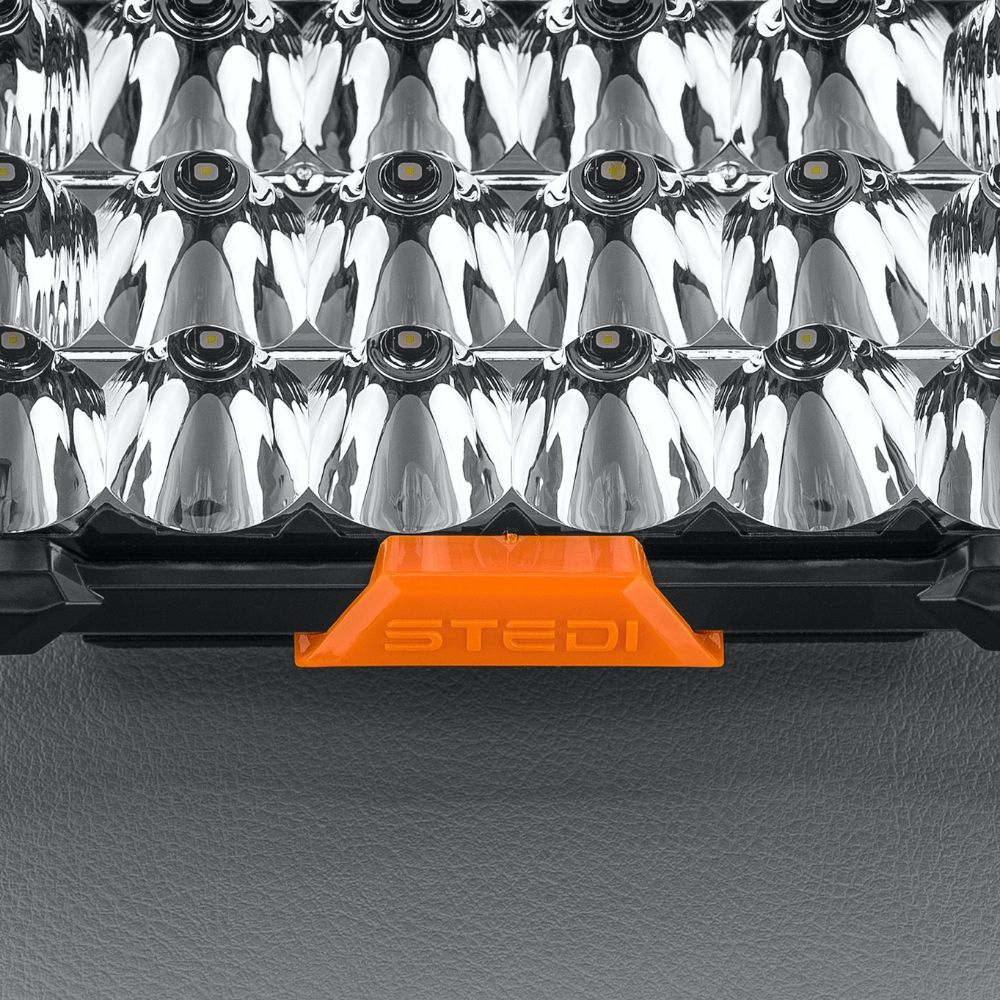

- LED - 24 x Oslon High-Flux LED
- RAW LUMENS - 17,040 (Pair)
- TESTED LUMENS - 11,360 (Pair)
- AMP DRAW - 7.4A @ 13.2v (each)
- POWER DRAW - 97W (each)
- CANDELA - 693,889cd
- BEAM PATTERN - 4 x Spread 20 x Pencil Beam
- INGRESS PROTECTION - IP68 | Submersible up to 3m
- COLOUR TEMP (CCT) - 5700K
- VOLTAGE COMPATIBILITY - 12v & 24v
- LUMEN MAINTENANCE - 50,000 LM-80

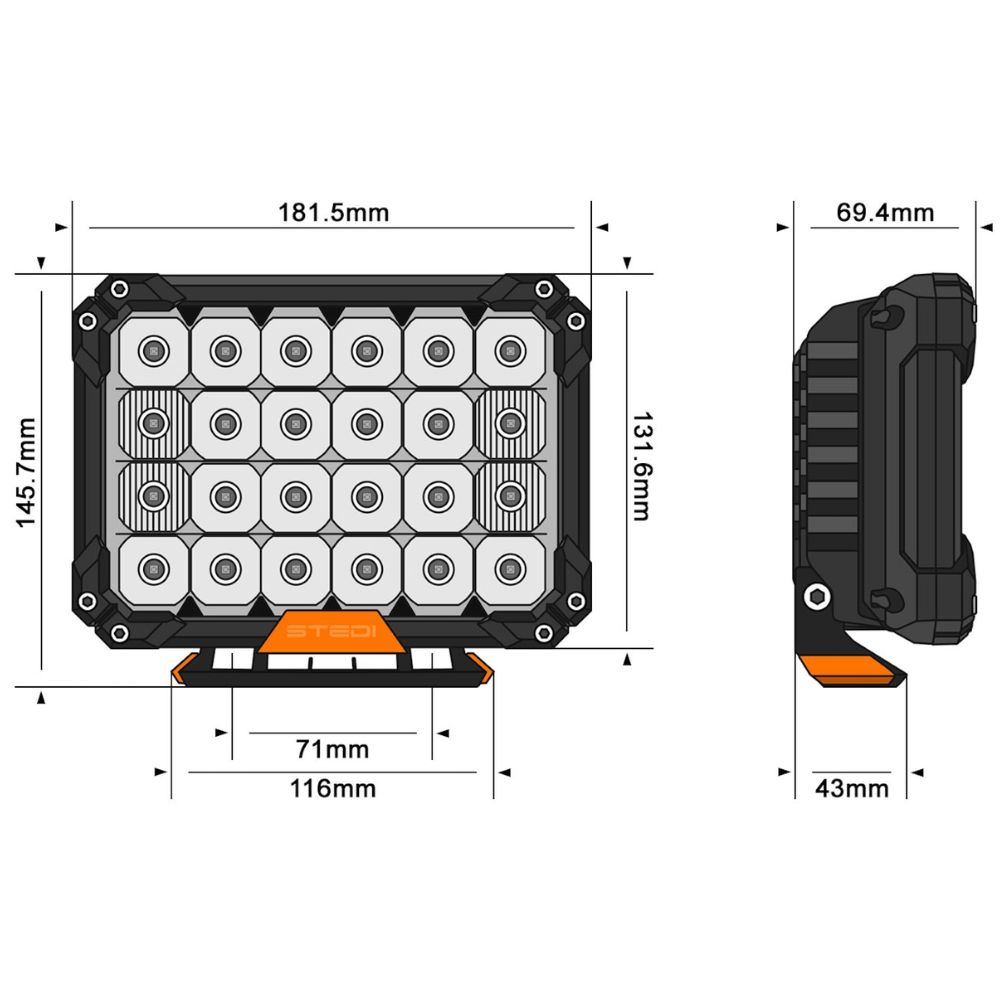

- WEIGHT - 1.4Kg (Including cover) (each)
- SKU: LEDQUAD-PRO

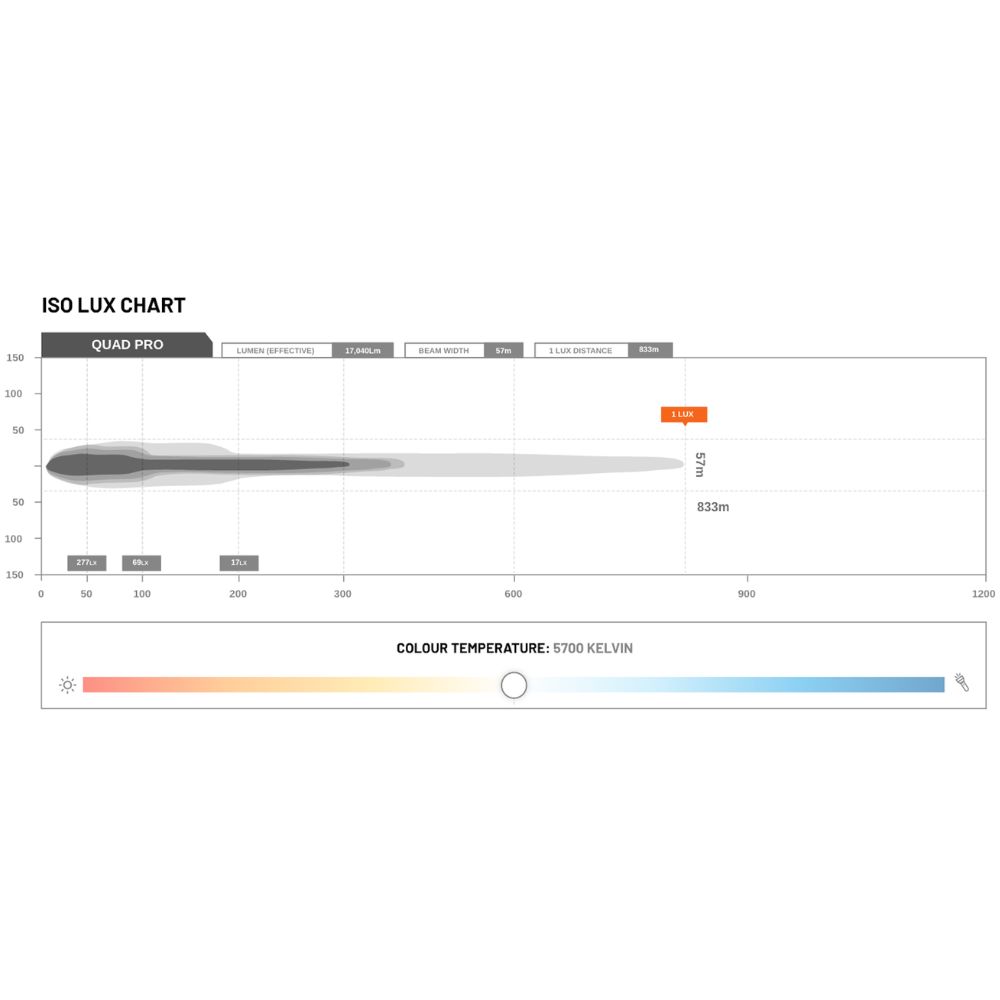

PHOTOMETRIC DATA
- 10 m - 6,938 Lx
- 50 m - 277 Lx
- 200 m - 17 Lx
- 300 m - 7.7 Lx
- 400 m - 4 Lx
- 500 m - 2.7 Lx
- 833 m - 1 Lx
