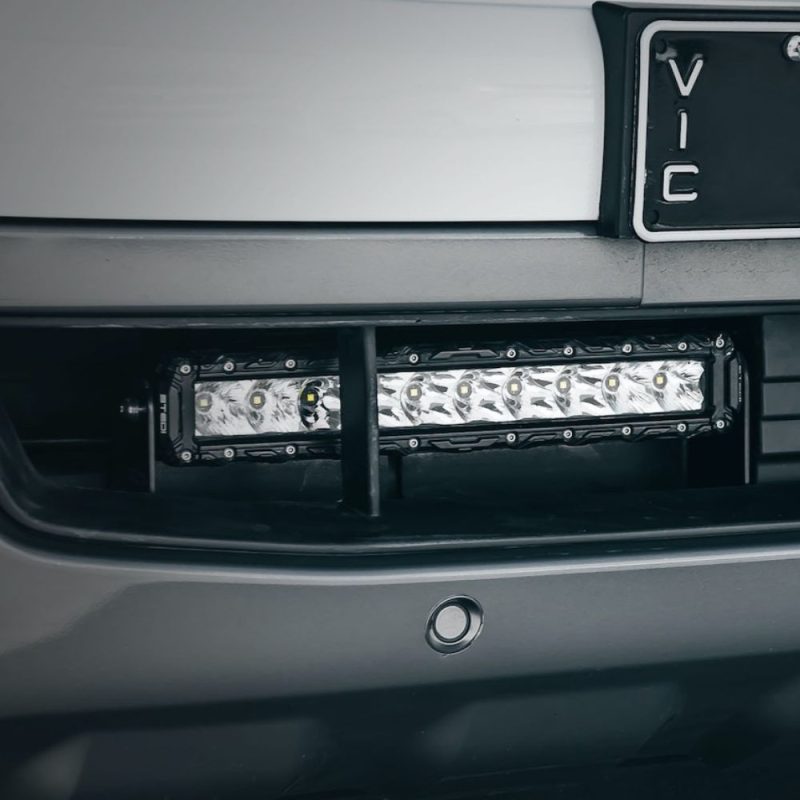

STEDI ST3K 11.5 Inch 10 Led Slim LED Light Bar

STEDI ST3K 11.5 Inch 10 Led Slim LED Light Bar

ST3K Series 11.5 Inch LED Light Bar. Running 10 of OSRAM’s® finest OSLON® LEDs with a combination of 2 Flood + 6 Spot + 2 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 348m.
Built on our hugely successful ST(X)K LED & reflector platform but with a low profile design. Our ST3K range is designed specifically for applications that are tight on clearance but still command maximum performance.
Finished in 100% Polyester UV and abrasion resistant powder coat ensures that our bars will never discolour.
Pressure Equalization vent | Protects against water ingress, dust & contaminants.
IP68 | Dust & Particle tight + Water-proof up to 3 meters!
Environmentally sealed Deutsch ® DT-2 connector.
Protected against EMC and RFI.

Cover for light bar available here

WHAT'S INCLUDED

• ST3K 11.5 inch LED LIGHT BAR
• Low Profile Stainless Side Brackets
• Stainless Fasteners
• DT Wire Tail

SPECIFICATIONS

• Led - 10 X Osram Oslon White
• Effective Lumen - 2,050Lm
• Peak Intensity (Candela) - 121,600Cd
• Operating Voltage - 10-30V
• Dcip Rating - Ip68
• Current Draw - 2.1A @ 13.6V
• Colour Temperature (Cct) - 5700 Kelvin
• Housing Material - Aluminium Extrusion & Castlensge™ Lexan
• Mounting Bracket - Powder Coated 3Mm Stainless Steel
• Bolts And Fittings - 3 Series Stainless Steel
• Beam Type - Flood Spot Combo
• Life Span - 50,000 Hours
• Weight - 1.650
• Operating Environment - -40 - +50° Celsius
• SKU: LEDST3K-10L
