STEDI ST3K 51.5 Inch 50 Led Slim Led Light Bar

STEDI ST3K 51.5 Inch 50 Led Slim Led Light Bar

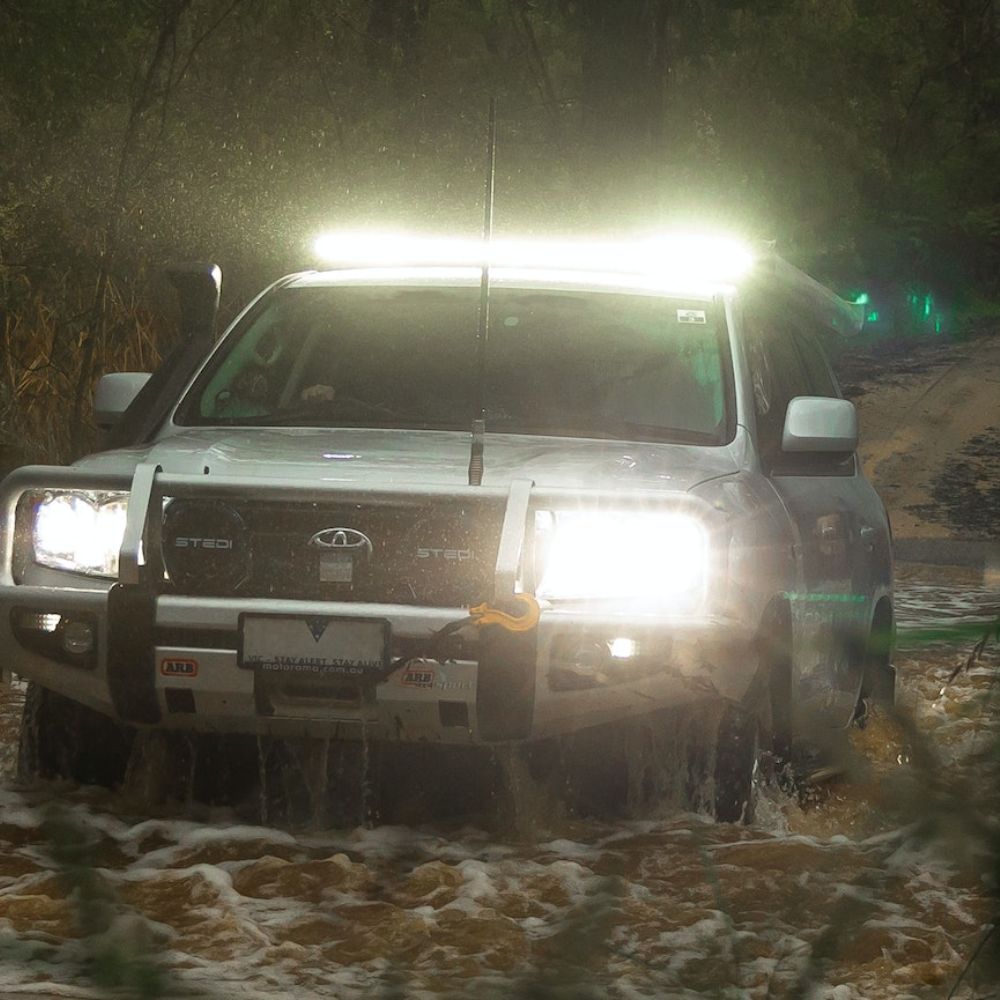

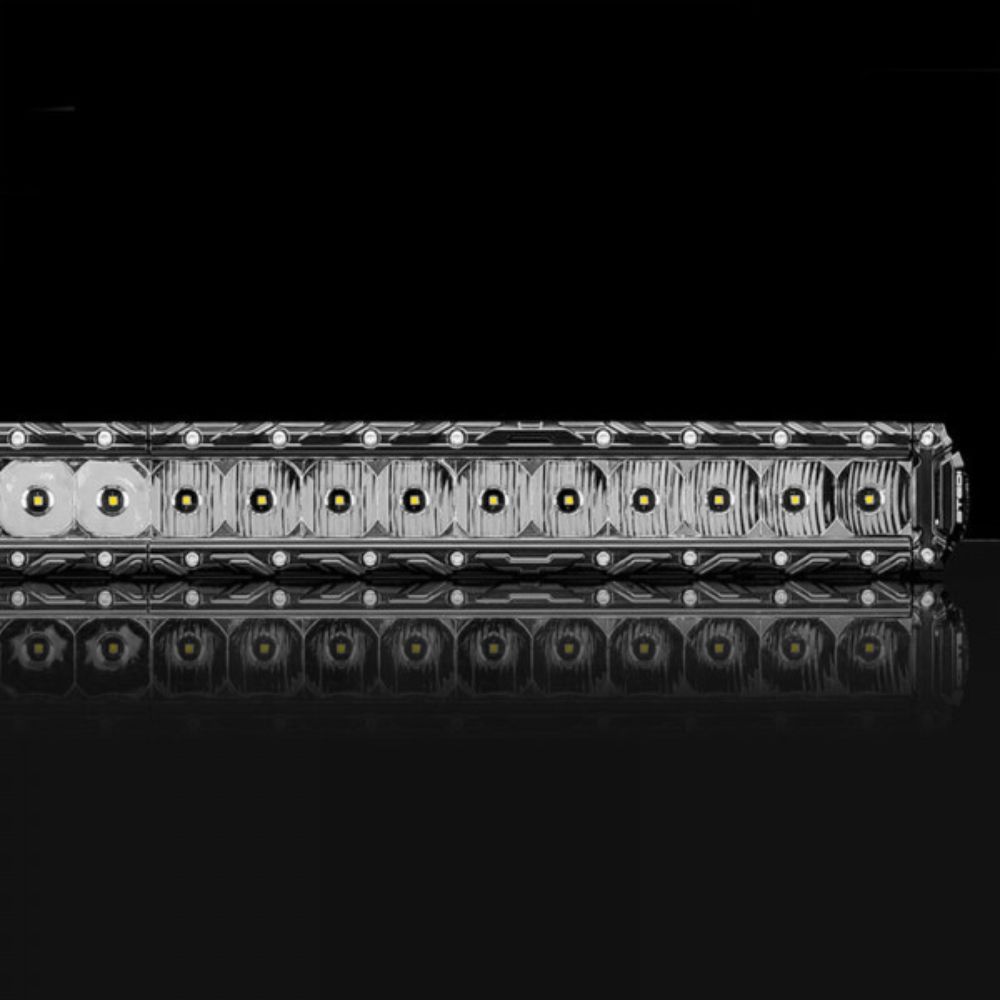

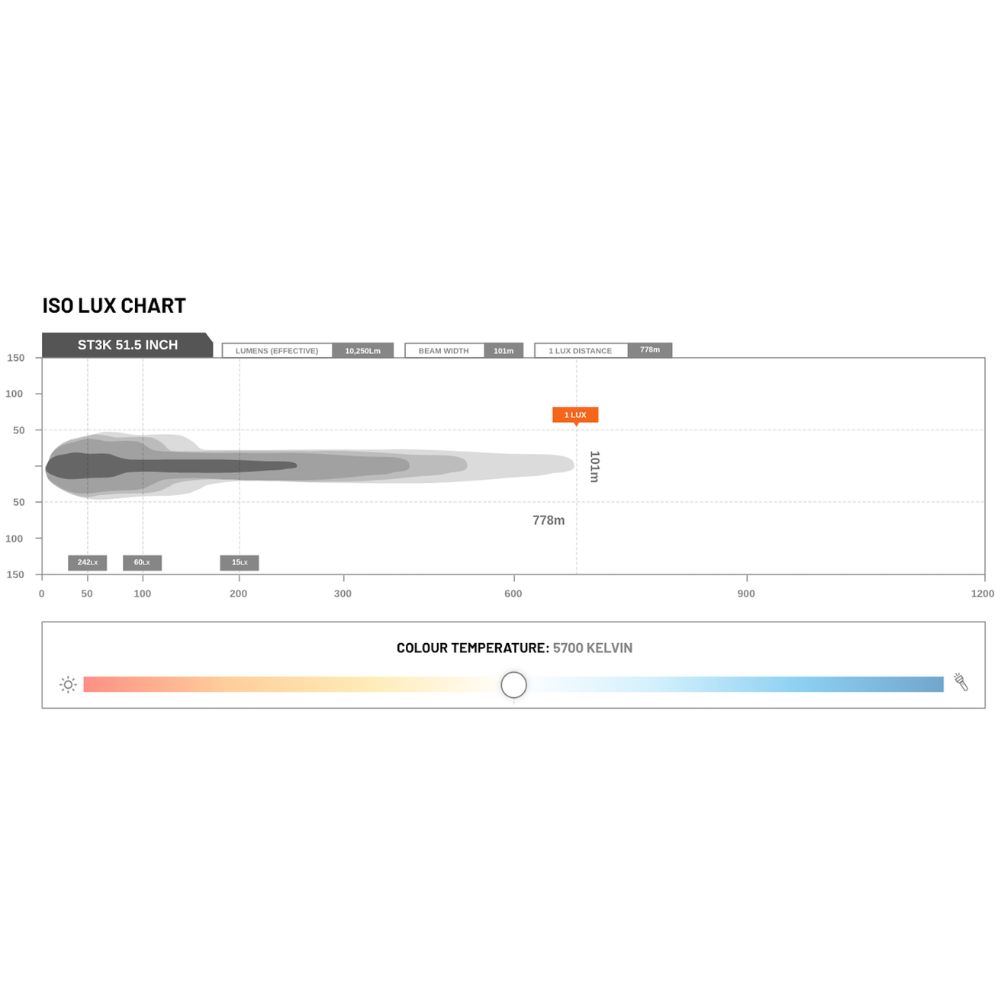

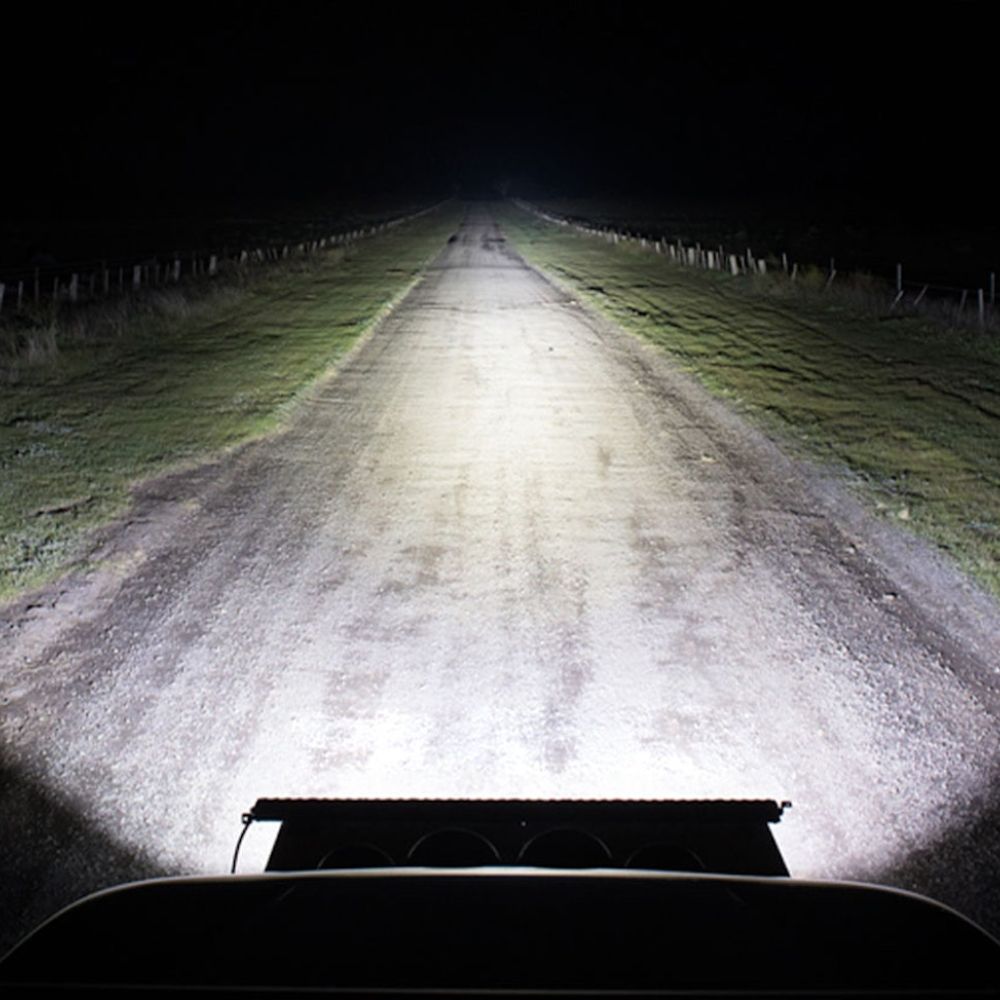

ST3K Series 51.5 Inch LED Light Bar. Running 50 of OSRAM’s® finest OSLON® LEDs with a combination of 10 Flood + 30 Spot + 10 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 778m.
Built on our hugely successful ST(X)K LED & reflector platform but with a low profile design. Our ST3K range is designed specifically for application that are tight on clearance but still command maximum performance.
Finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.
Pressure Equalization vent | Protects against water ingress, dust & contaminants.
IP68 | Dust & Particle tight + Water-proof up to 3 meters!
Environmentally sealed Deutsch ® DT-2 connector.
Protected against EMC and RFI.

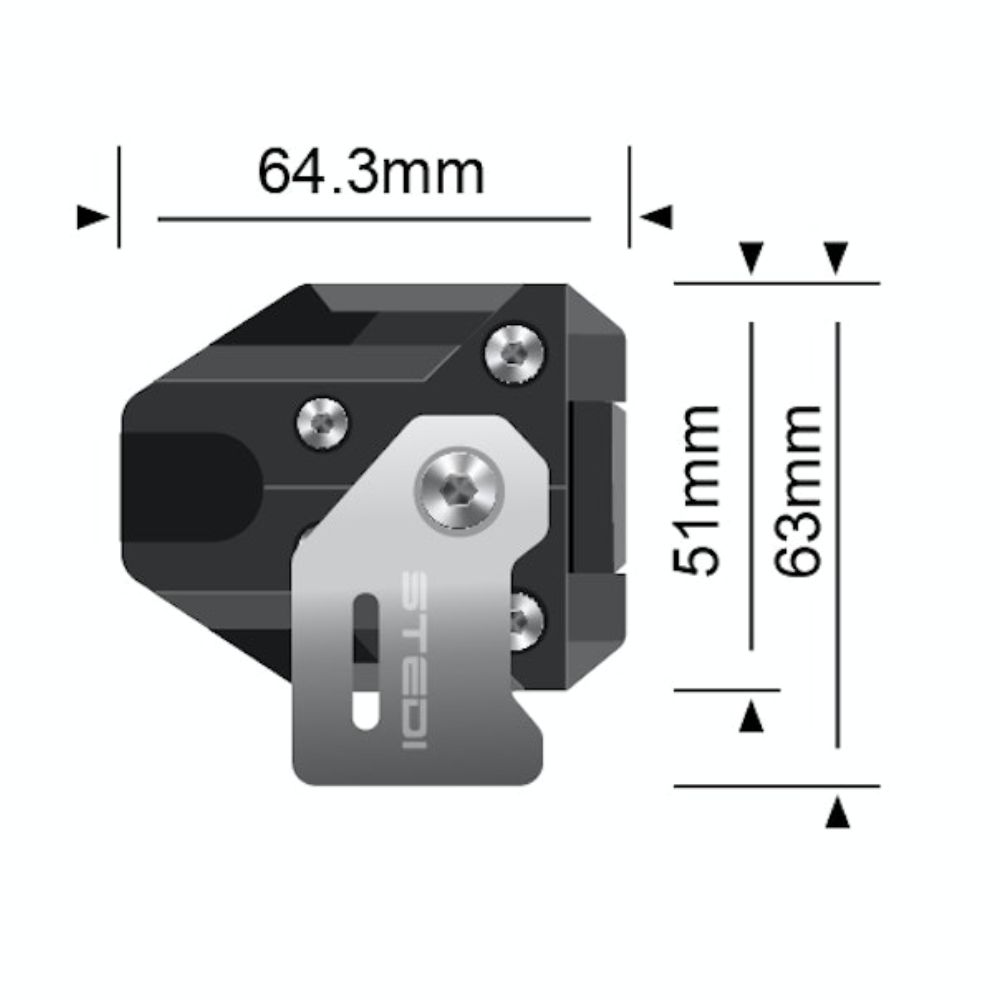

Ultra-Low 51mm profile without the side brackets & 63mm with side brackets!

Cover for light bar available here

WHAT'S INCLUDED

• ST3K 51.5inch LED LIGHT BAR
• Stainless Fasteners
• Stainless Steel Side Mounting Brackets
• 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
• H4 and HB3 adapters included
• Wiring Instructions

SPECIFICATIONS

• Led - 50 X Osram Oslon White
• Effective Lumen - 10,250Lm
• Peak Intensity (Candela) - 608,000Cd
• Operating Voltage - 10-30V
• Dcip Rating - Ip68
• Current Draw - 11.2A @ 13.6V
• Colour Temperature (Cct) - 5700 Kelvin
• Housing Material - Aluminium Extrusion & Castlensge™ Lexan
• Mounting Bracket - Powder Coated 3Mm Stainless Steel
• Bolts And Fittings - 3 Series Stainless Steel
• Beam Type - Flood Spot Combo
• Life Span - 50,000 Hours
• Weight - 4.250
• Operating Environment - -40 - +50° Celsius
• SKU: LEDST3K-50L
