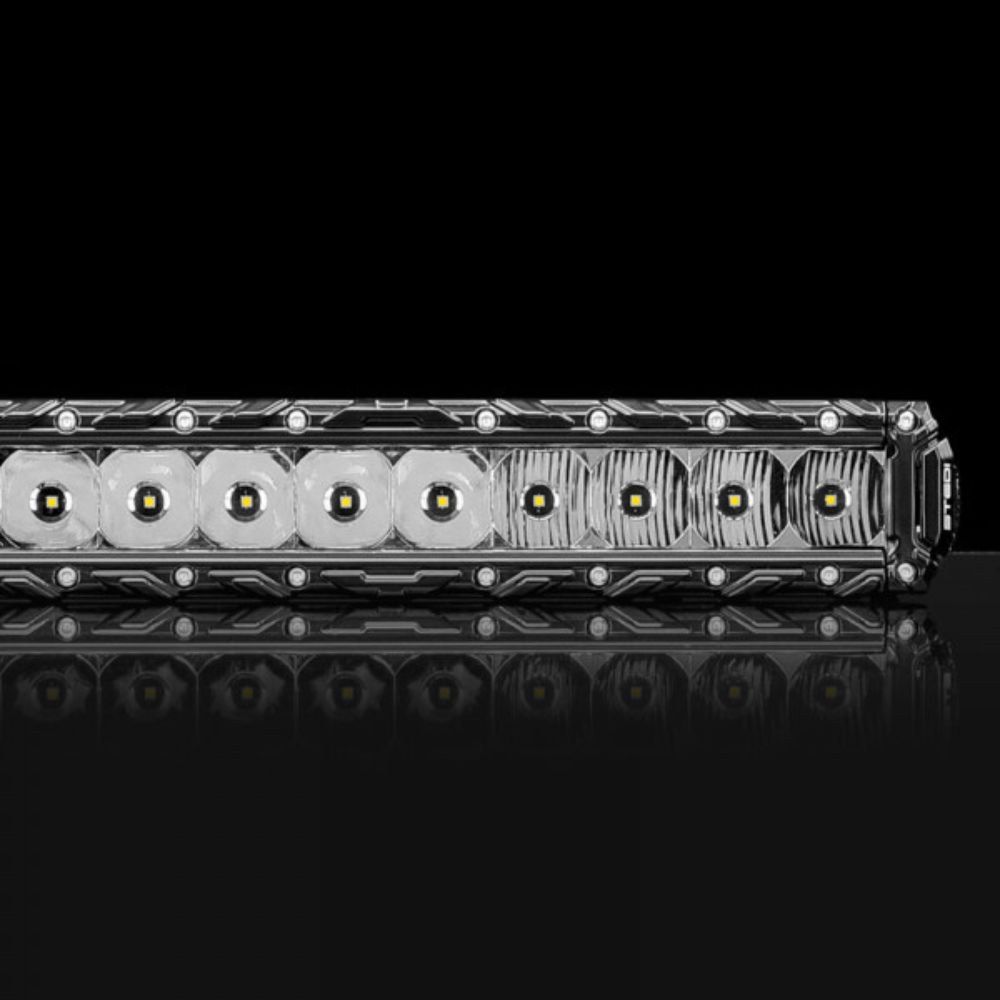

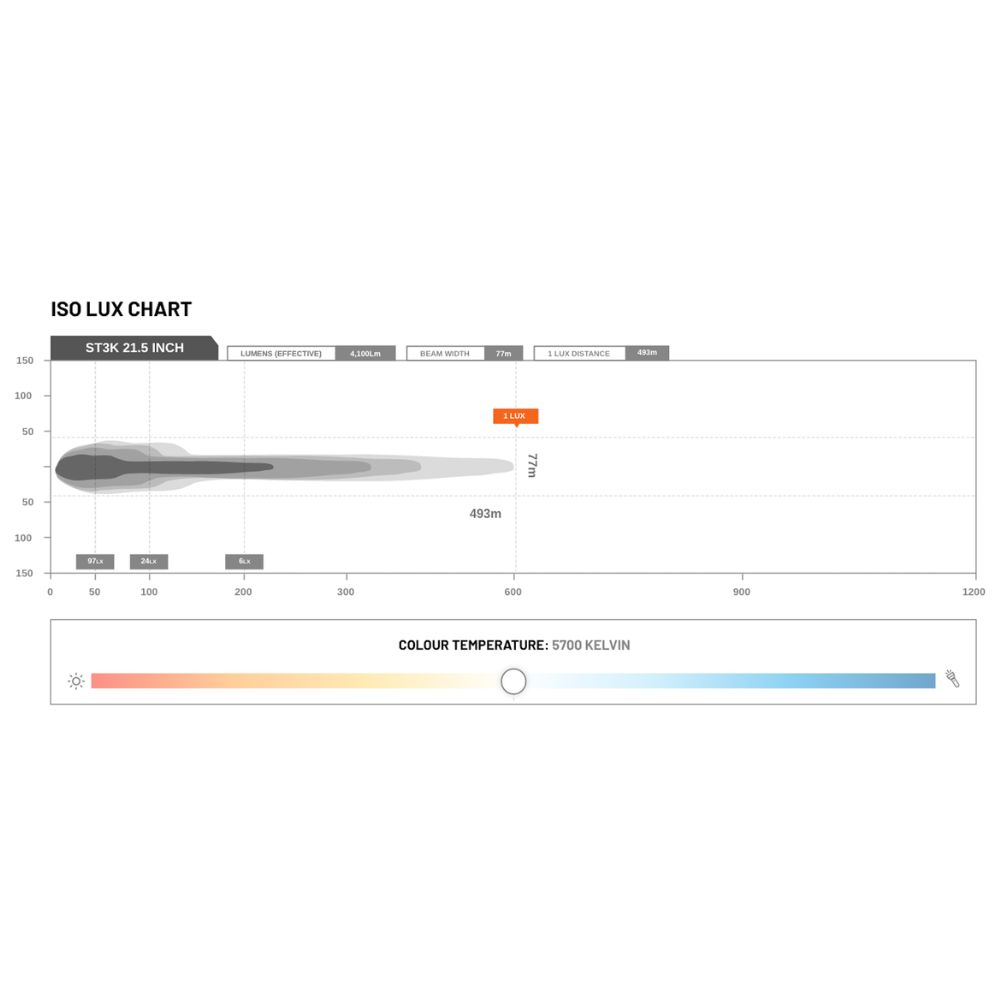

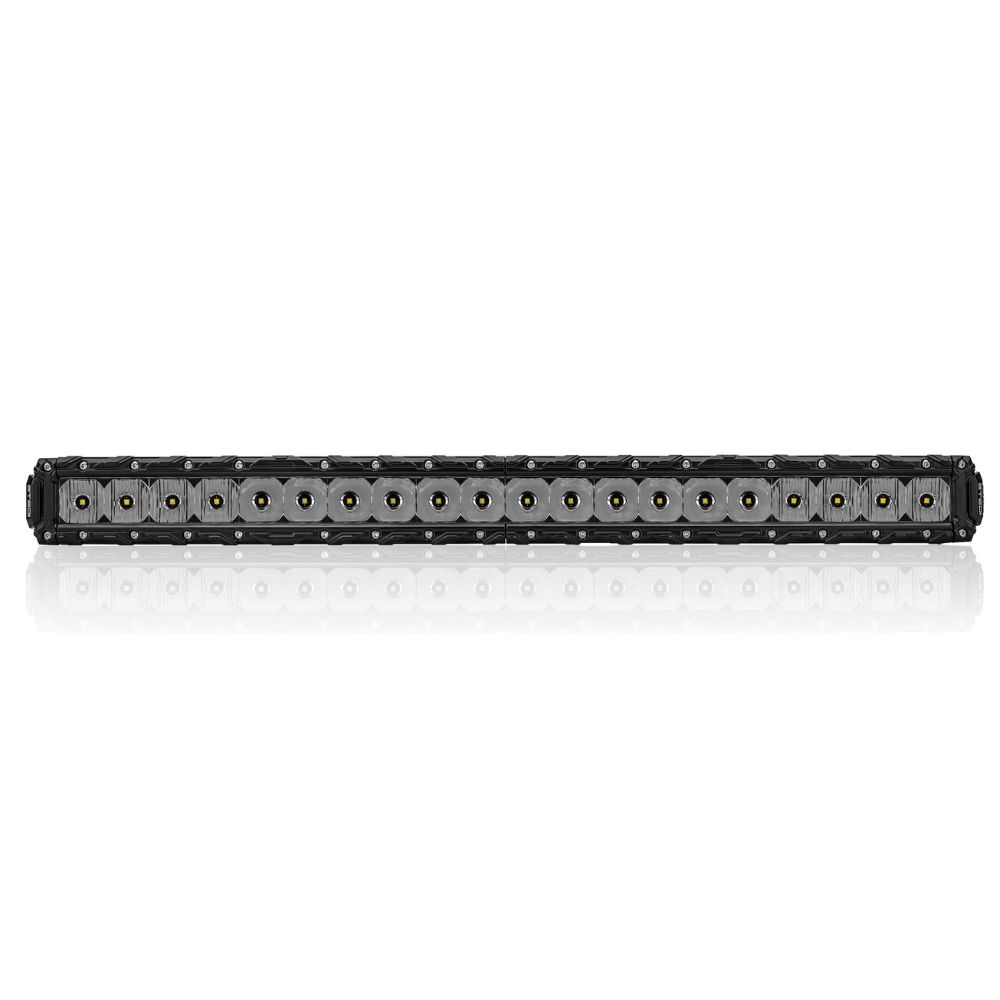

ST3K Series 21.5 Inch LED Light Bar. Running 20 of OSRAM’s® finest OSLON® LEDs with a combination of 4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 493m.
Built on our hugely successful ST(X)K LED & reflector platform but with a low profile design. Our ST3K range is designed specifically for application that are tight on clearance but still command maximum performance.
Finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.
Pressure Equalization vent | Protects against water ingress, dust & contaminants.
IP68 | Dust & Particle tight + Water-proof up to 3 meters!
Environmentally sealed Deutsch ® DT-2 connector.
Protected against EMC and RFI.

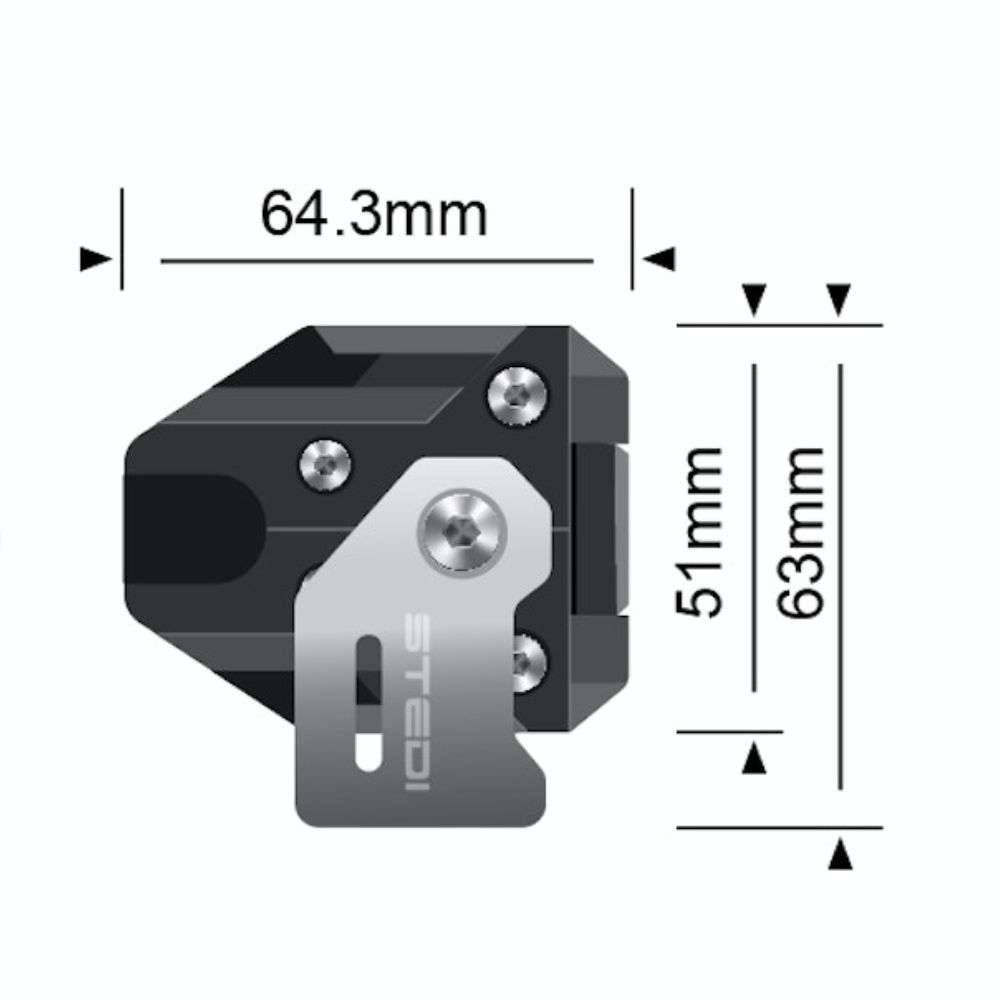

Ultra-Low 51mm profile without the side brackets & 63mm with side brackets!

Cover for light bar available here

WHAT'S INCLUDED

• ST3K 21.5inch LED LIGHT BAR
• Stainless Fasteners
• Stainless Steel Side Mounting Brackets
• 12v Quick Fit to High Beam Wiring, Relay, Wiring Kit and On/Off Switch
• H4 and HB3 adapters included
• Wiring Instructions

SPECIFICATIONS

• Led - 20 X Osram Oslon White
• Effective Lumen - 4,100Lm
• Peak Intensity - 243,200Cd
• Operating Voltage - 10-30V
• Dcip Rating - Ip68
• Current Draw - 4.3A @ 13.5V
• Colour Temperature (Cct) - 5700 Kelvin
• Housing Material - Aluminium Extrusion & Castlensge™ Lexan
• Mounting Bracket - Powder Coated 3Mm Stainess Steel
• Bolts And Fittings - 3 Series Stainless Steel
• Beam Type - Flood Spot Combo
• Life Span - 50,000 Hours
• Weight - 1.855
• Operating Environment - -40 - +50° Celsius
• SKU: LEDST3K-20L
