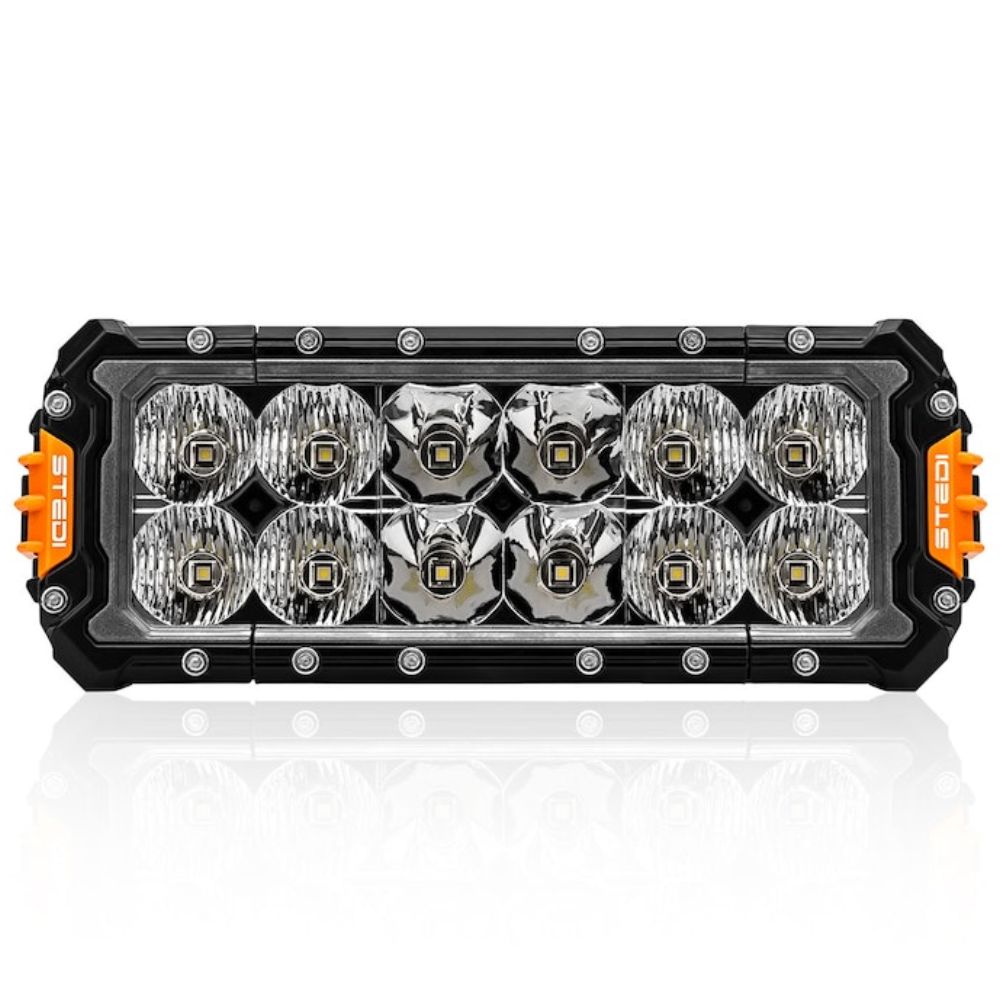

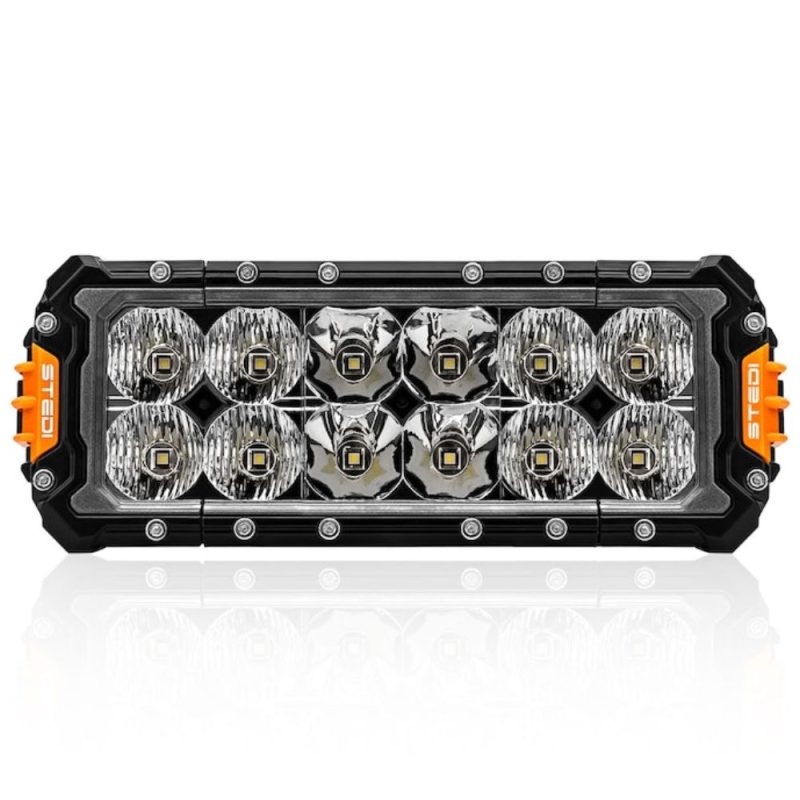

STEDI ST3303 Series 11 Inch 12 LED Double Row Light Bar – LED3303-PRO-12L

STEDI ST3303 Series 11 Inch 12 LED Double Row Light Bar - LED3303-PRO-12L

The ST3303-PRO is simply the next step in the evolutionary tree for this coveted Australian brand. It is a pure expression of capability and design that converges with brutal performance, making the all-new ST3303 PRO unmistakably Stedi.

• Registered Design: 201915829.
• CREE® XLamp XP-L HI undomed LEDs using CREE’s breakthrough SC5 Technology™
• RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
• IP68 - Submersible to 3m
• Deutsch DT 15A connector
• 32mm diameter parabolic reflectors
• Spread and Spot beam pattern
• 4mm thick 304 stainless steel side brackets included.
• Cast Alloy adjustable sliding bracket included.
• Nitto Denko™ Breather with PTFE microporous membrane
• Heavy-duty Smart Plug & Play ADR compliant Wiring Harness. (Switch, Fuse, Relay, and HB3 and H4 Piggyback Adaptors) include

Covers for the light bar are available here and different coloured end caps for customisation are available here

WHAT'S INCLUDED

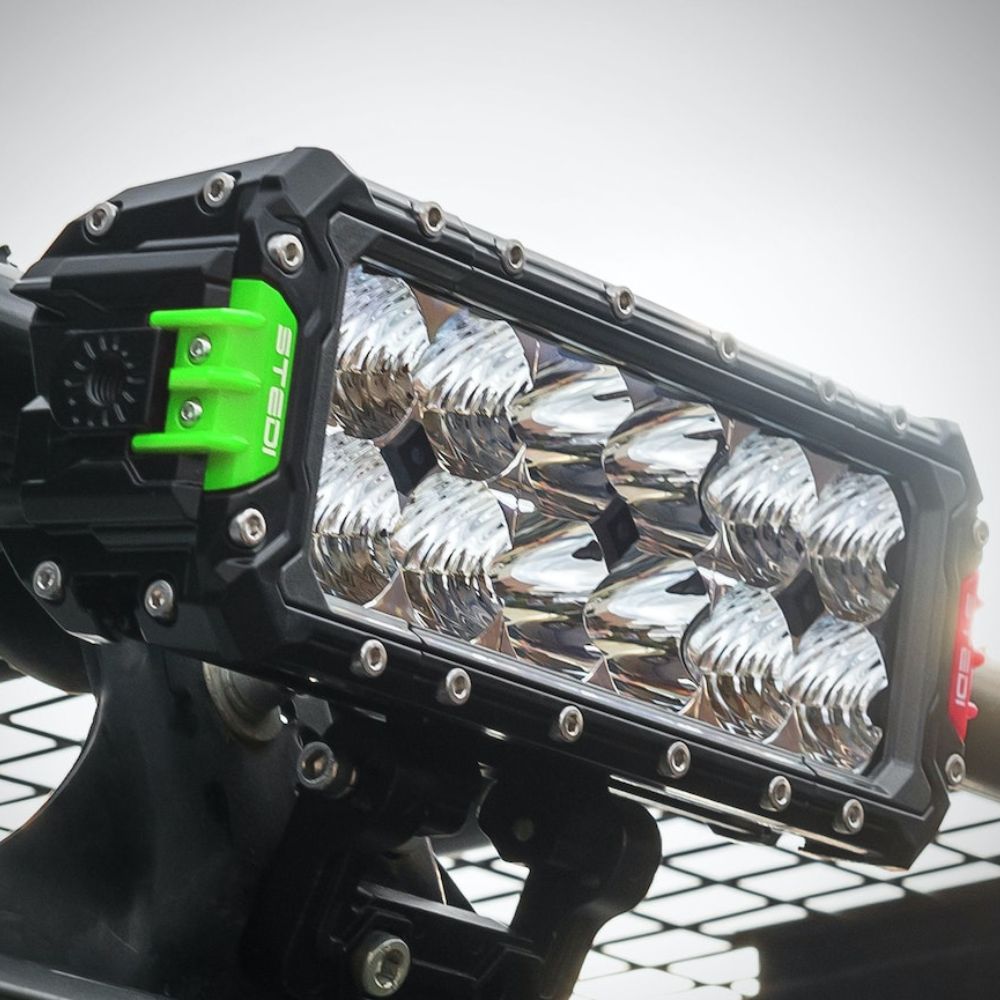

• ST3303 PRO 12 LED 11 Inch Light Bar
• Easy Fit High Beam Wiring Harness with H4 & HB3 adapters to High Beam

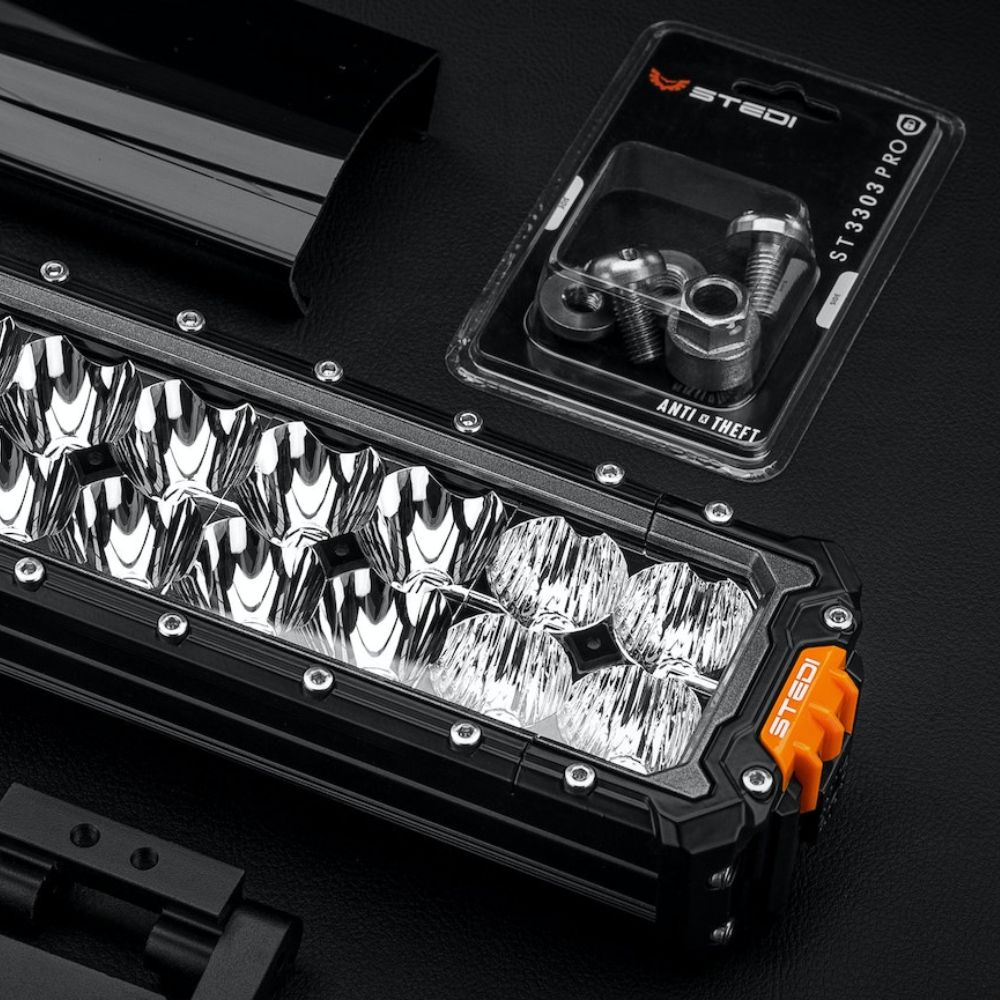

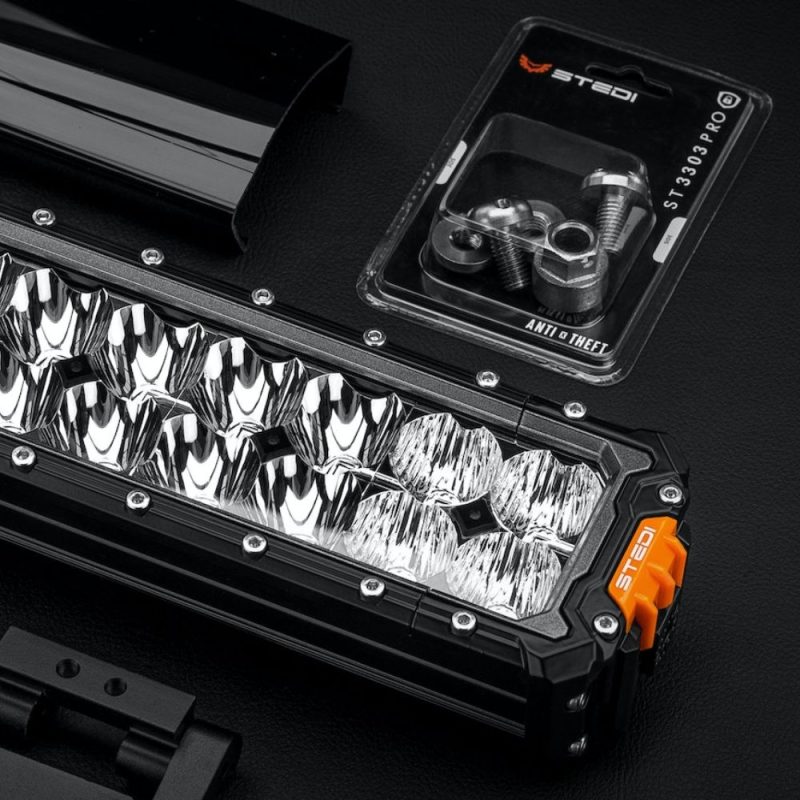

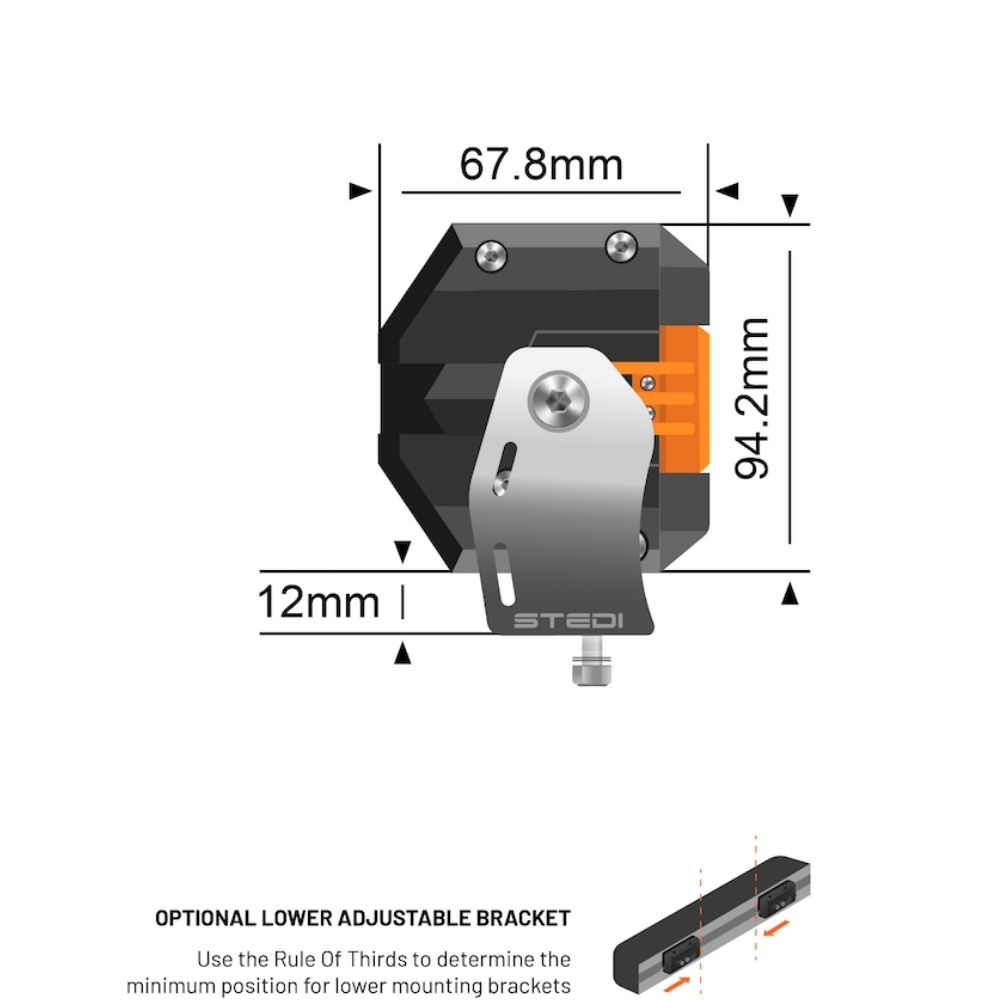

• 1 x Lower Mounting Bracket with Stainless Steel Fasteners
• 2 x 4mm thick Stainless Steel Side Brackets

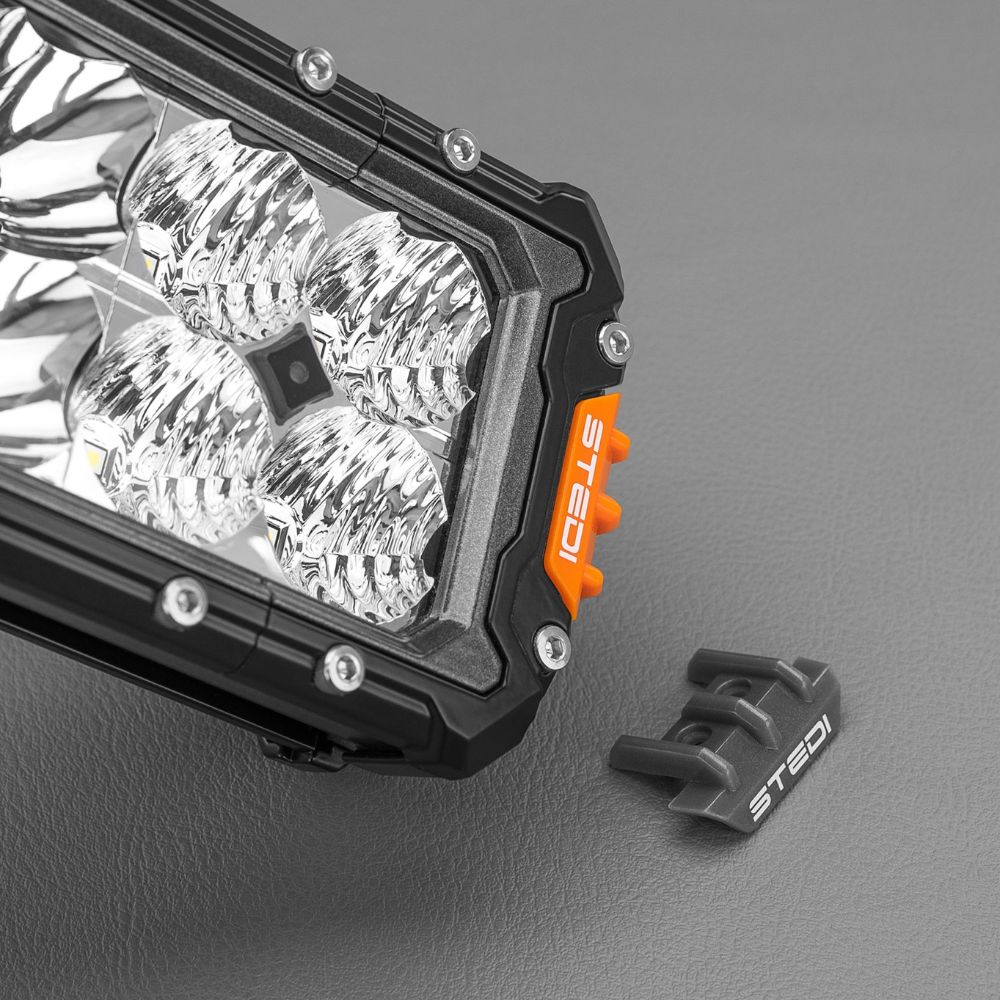

• 2 x Orange End Caps
• 2 x Grey End Caps

SPECIFICATIONS

• LED - 12 x CREE XPL Hi-Intensity LED
• VOLTAGE - 9V - 32V
• CURRENT DRAW (AMPERES) - 5.9a @ 13.6v

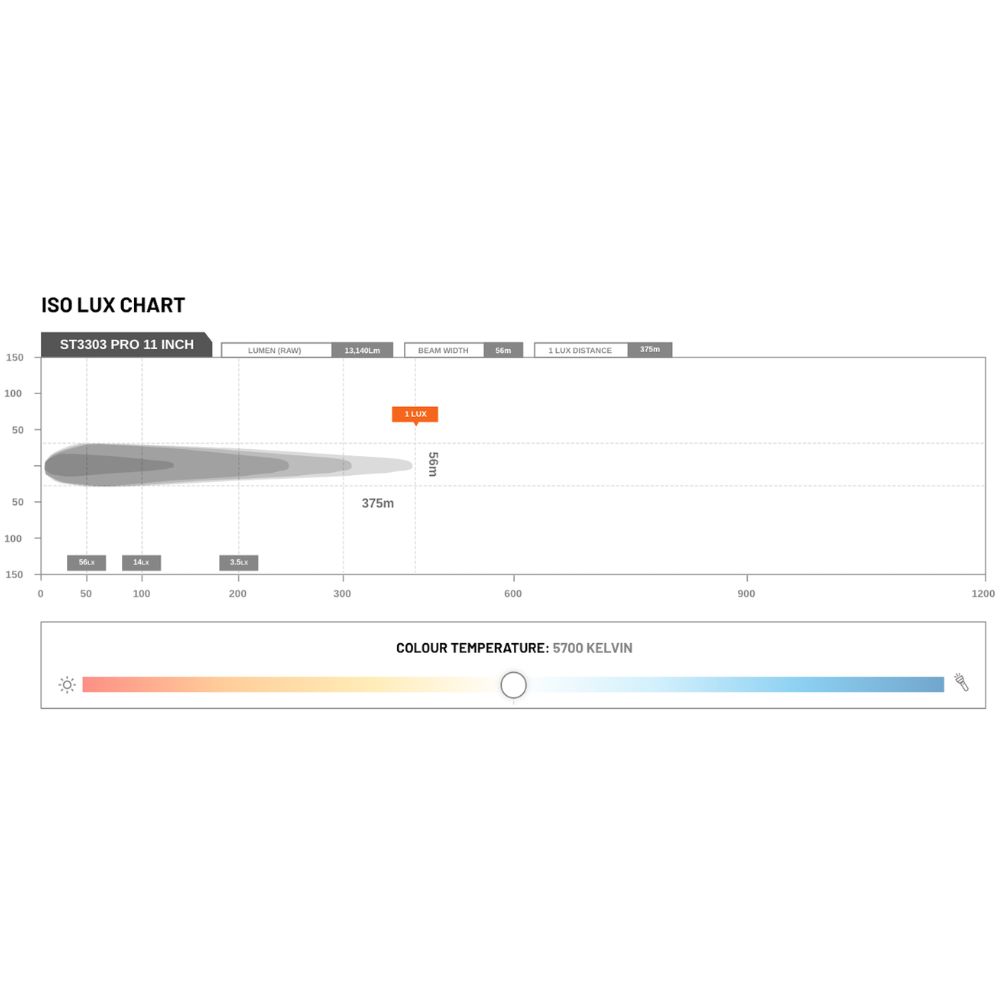

• RAW LUMENS - 13,140Lm
• EFFECTIVE LUMENS - 6,720Lm
• PEAK INTENSITY (CANDELA) - 360,800cd
• COLOUR TEMP (CCT) - 5700K
• LENS MATERIAL - Optical Grade, Hard-Coated Lexan
• HOUSING MATERIAL - A360.0 Cast face plate, extruded Aluminum heat sink
• INGRESS PROTECTION - IP68
• FLOOD BEAM - 50°
• SPOT BEAM - 9°
• LIFESPAN - 50,000hrs
• OPERATING TEMP - -40°C ~ +150°C
• WEIGHT - 1,295kg
• SKU: LED3303-PRO-12L
