Single Row Lightbar Light Bar Rocker Switch

$19.00 inc. GST

SINGLE ROW LED LIGHTBAR LIGHT BAR ROCKER SWITCH

Brand -
SKU: ORC_RAARYAAR Category:

About this product

SINGLE ROW LED LIGHTBAR LIGHT BAR ROCKER SWITCH

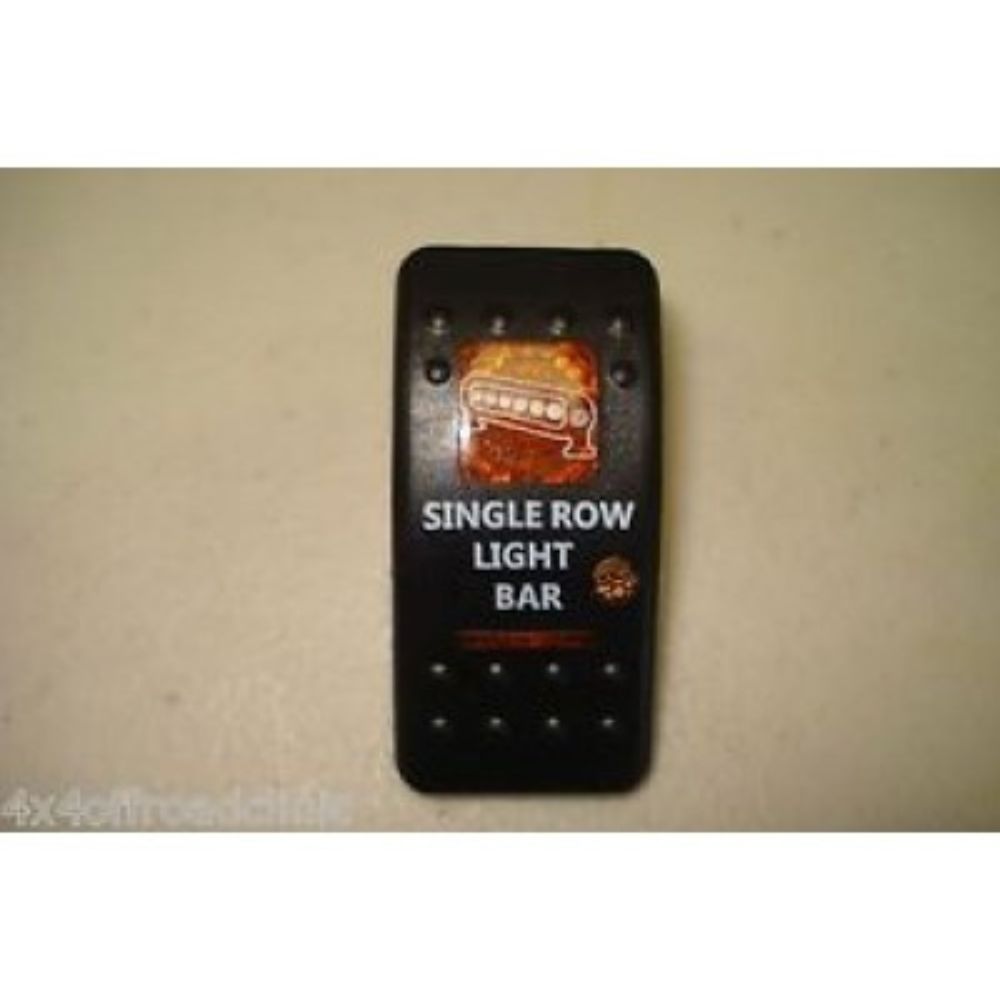

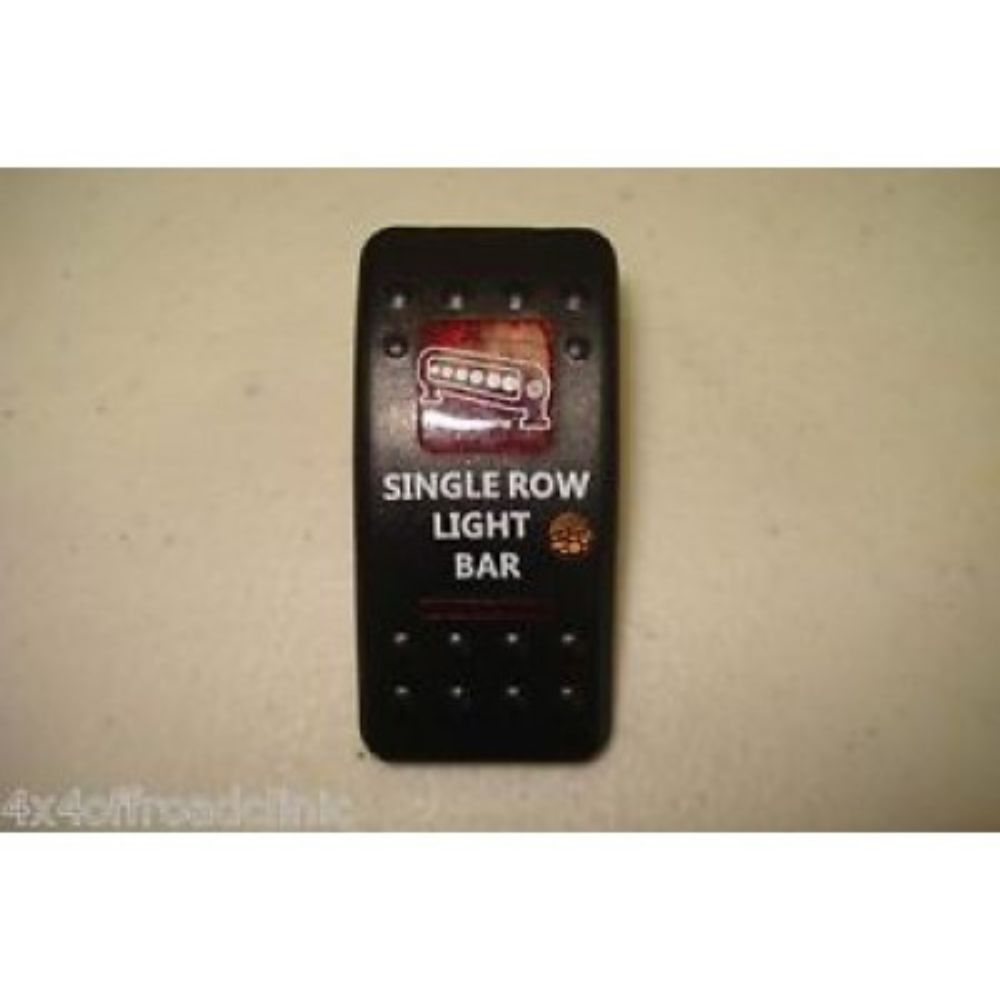

Exclusive to 4x4offroadclinic. SINGLE ROW LED LIGHTBAR LIGHT BAR ROCKER SWITCH. Available in RED AND AMBER LENS caps.1 SPST ON/OFF switch. 1 Black hard surface rocker, RED, and AMBER lens. SINGLE ROW LED LIGHT BAR SWITCH. Two incandescent lights. The Upper light is ON when the upper part of the rocker is pressed (ON). The lower light is independently wired and could be connected to the dash light circuit. This switch uses the same light configuration as the ARB switches. Rated 20A 12V. 10A 24V. Rear barriers in the back between terminals. The wiring circuit diagram supplied mounting Hole is 21.08 x 36.83mm. Overall size of switch face actuator is 24mm x 50mm. The switch has self securing sprung plastic tabs and can fit holes slightly larger than recommended.

Additional information

Weight 0.05 kg
Dimensions 12 × 10 × 6 cm
