Awning Light Rocker Switch


BLUE awning lights rocker switch

Enquire Now
Brand -

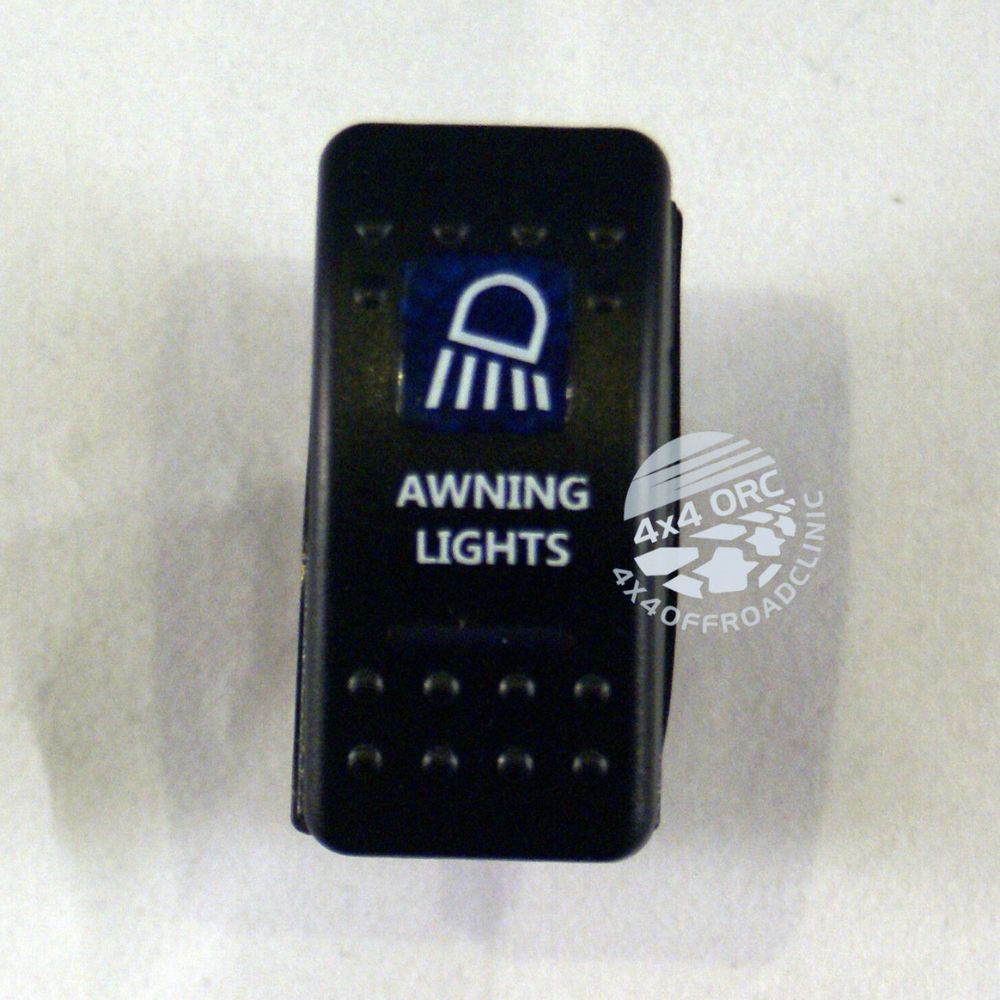

4X4OFFROADCLINIC ARB NARVA STYLE AWNING LIGHTS ROCKER SWITCH is our own design others you may see are copies. Available in BLUE AND AMBER LENS. SPST ON/OFF switch. Black hard surface rocker, BLUE AND AMBER lens. AWNING LIGHTS. Two incandescent lights. The Upper light is ON when the upper part of the rocker is pressed (ON). The lower light is independently wired and could be connected to the dash light circuit. This switch uses the same light configuration as the ARB switches. Rated 20A 12V. 10A 24v. Rear barriers in the back between terminals. Wiring circuit diagram SUPPLIED AND IS AVAILABLE ON. Mounting Hole is 21.08 x 36.83mm. The overall size of the switch face actuator is 24mm x 50mm. The switch has self-securing sprung plastic tabs and can fit holes slightly larger than recommended.

Additional information

Weight 0.35 kg
Dimensions 5 × 5 × 5 cm
