Water Pump LED Rocker Switch Laser Etched

$25.00 inc. GST

WATER PUMP LED ROCKER SWITCH LASER ETCHED

Brand -
SKU: ORC_BRGIPRER Category:

About this product

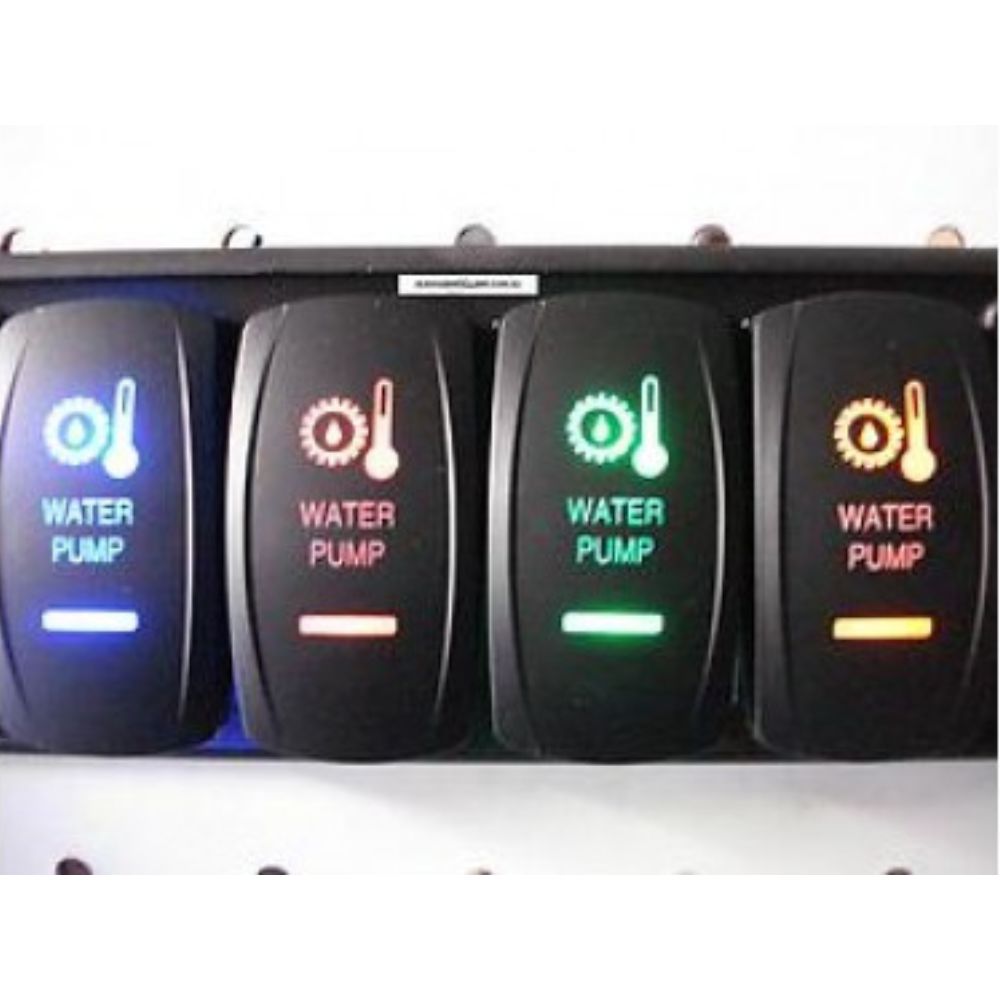

WATER PUMP LED ROCKER SWITCH LASER ETCHED
SPST ON/OFF switch. Black hard surface rocker, LASER ETCHED lens. WATER PUMP SWITCH. Two led lights. WATER PUMP LED ROCKER SWITCH LASER ETCHED. The Upper light is ON when the upper part of the rocker is pressed (ON). The lower light is independently wired and could be connected to the dash light circuit. This switch uses the same light configuration as the ARB switches. Rated 20A 12V. 24v 10A. Rear barriers in the back between terminals. mounting Hole is 21.08 x 36.83mm. The overall size of the switch face actuator is 24mm x 50mm. The switch has self-securing sprung plastic tabs and can fit holes slightly larger than recommended.

Additional information

Weight 0.035 kg
Dimensions 5 × 5 × 5 cm
