Power Distrubution Panel

Power Distrubution Panel

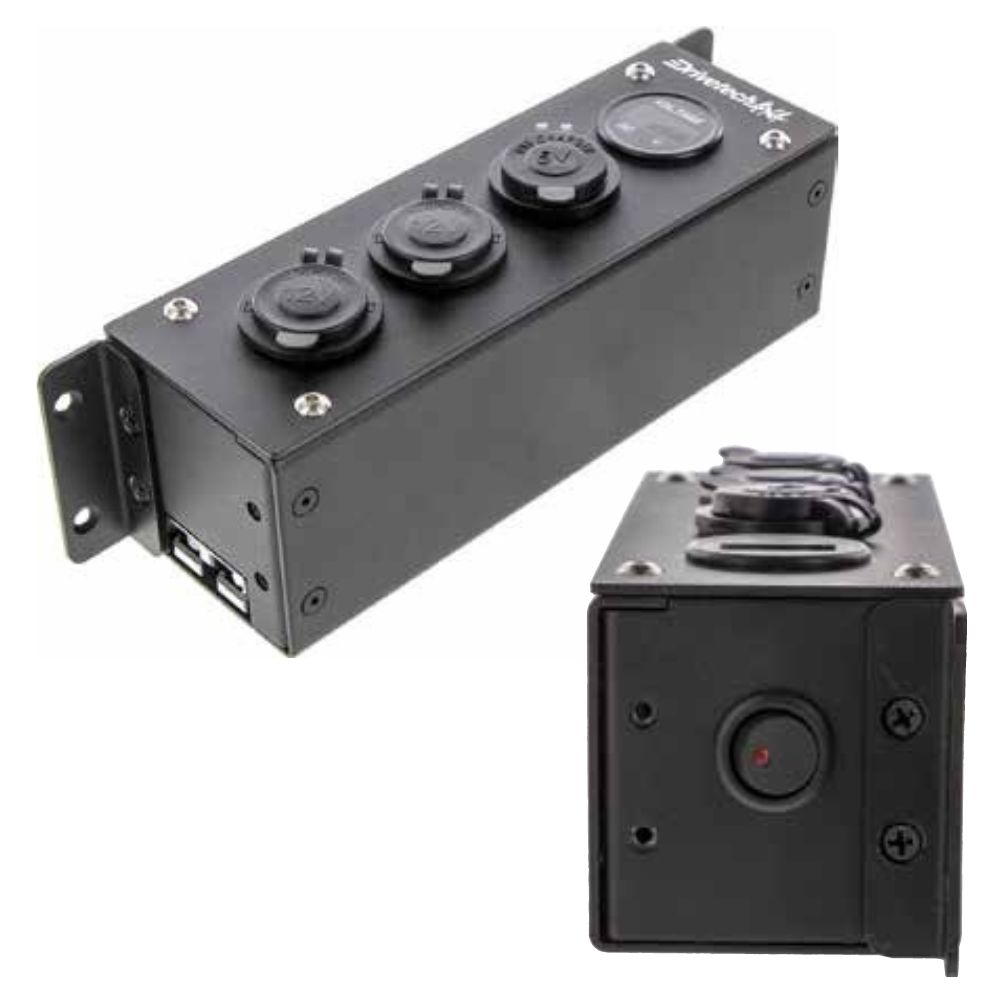

DT-11220 Power Distribution Panel is the latest addition to the Drivetech 4x4 range. A laser cut black powder-coated aluminium panel houses a dual USB socket with cover, 2 DC power sockets, a digital voltmeter, and a 50A Anderson style input socket. The digital voltmeter is controlled by the on/off switch at the top of the unit. The panel also comes with a set of black powder-coated mounting brackets for convenient mounting options. Perfect for powering a variety of devices when out using a 4WD, camper trailer, caravan, or RV.

SPECIFICATIONS
Maximum cumulative amperage: 20A
Rated: 12/24V DC
Dimensions: 21x7x7cm
Cover plate thickness: 2mm
Operating temperature: -25°C to 80°C
Warranty: 1 Year

FEATURES:

• 1x Dual USB socket with cover (2x 5V)
• 2x DC power sockets with covers (12V/20A, 24V/10A)
• 1x Digital voltmeter (5-30V)
• 1x 50A Anderson style input socket
• 1x On/Off voltmeter switch
• Includes a pair of black powder coated mounting brackets and screws
