Hulk 4x4 LED Combination Lamps

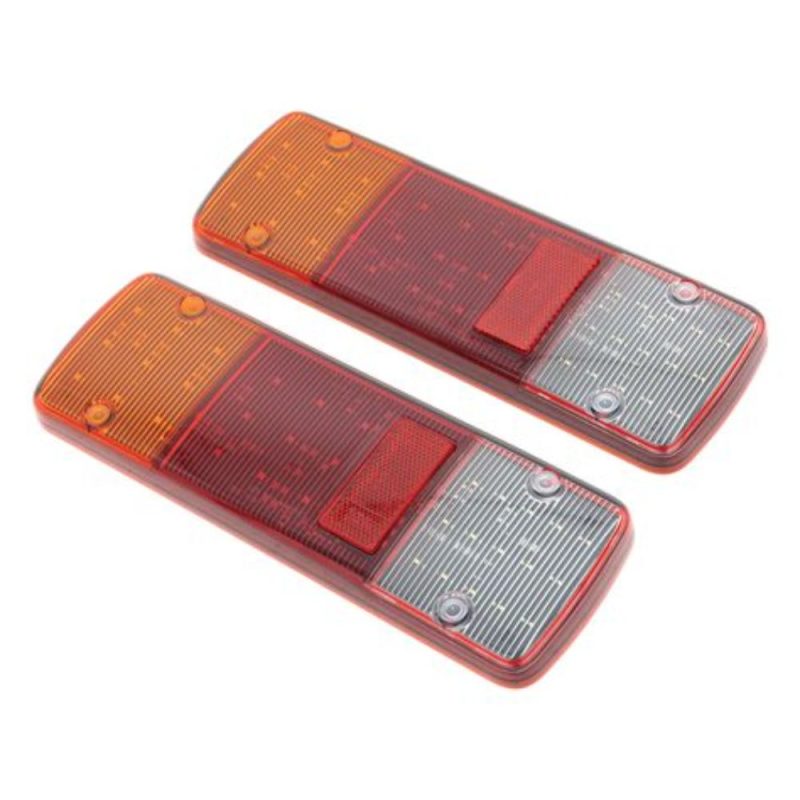

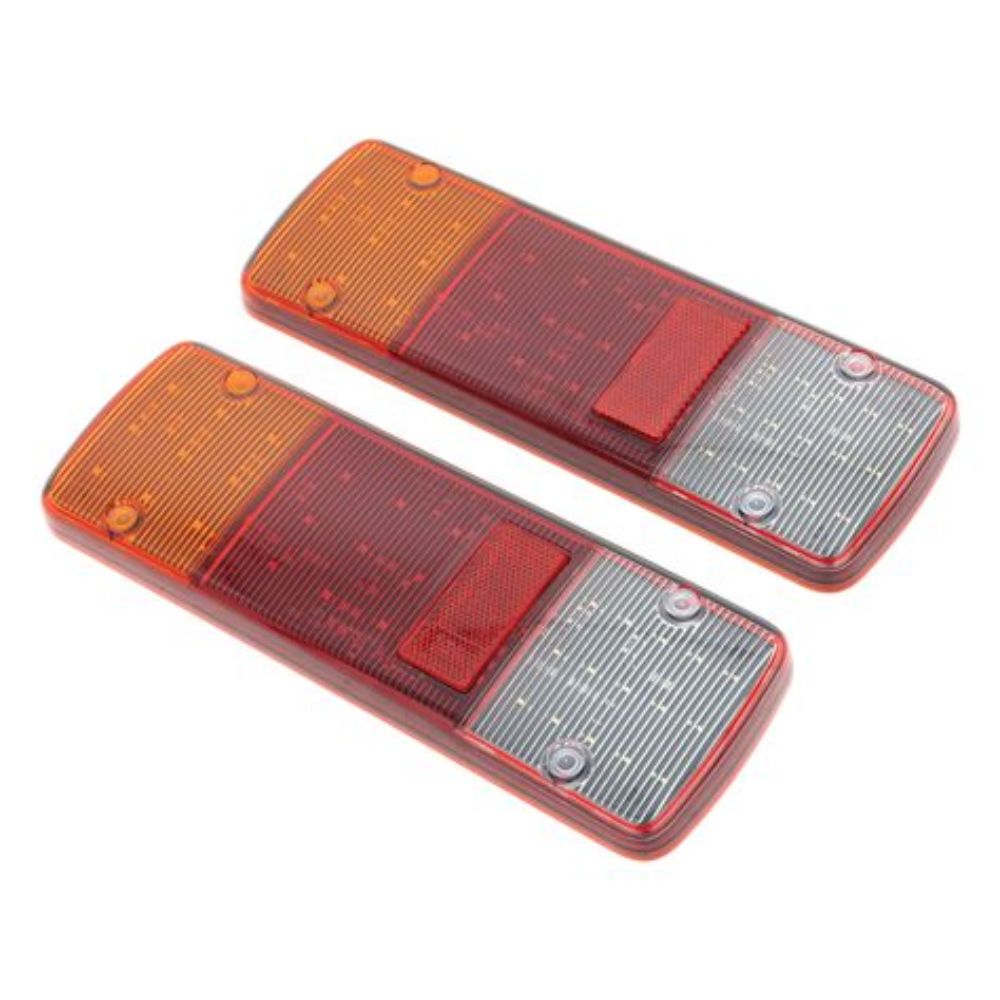

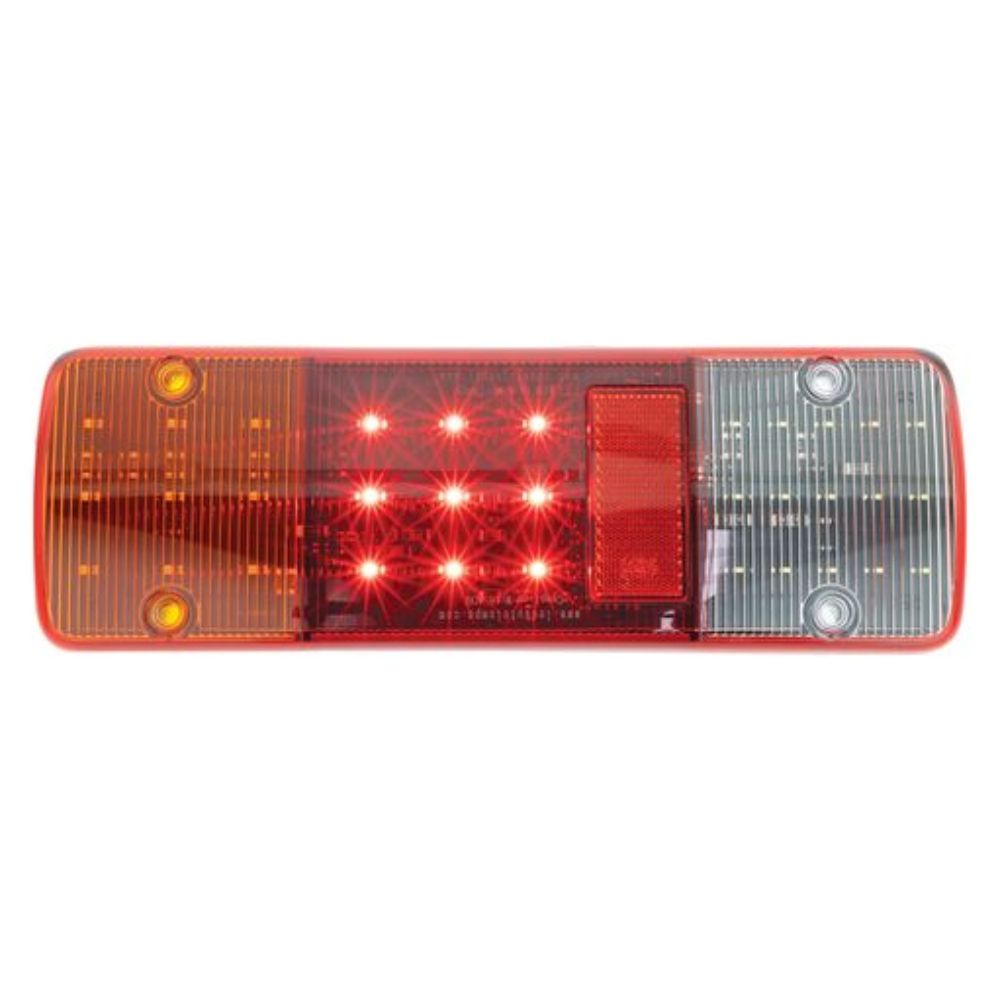

Hulk 4x4 LED Rear Combination Stop / Tail / Indicator / Reverse Lamp 12/24 Volt
Retrofit replacement unit for Toyota Landcruiser or Hilux Cab Chassis / Trayback vehicles
Features:

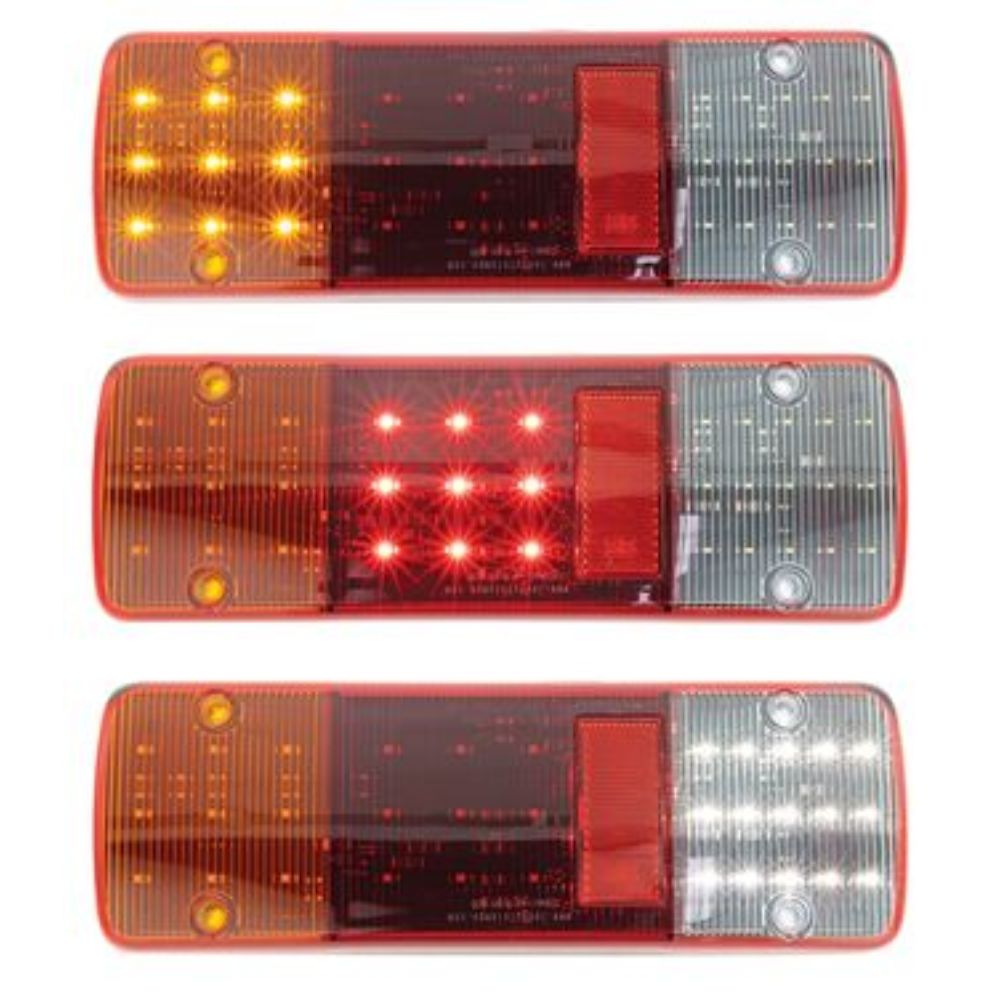

- Red, Amber and White Illumination
- Red and Clear PMMA Polycarbonate pattern free lenses with an in-built retro reflector

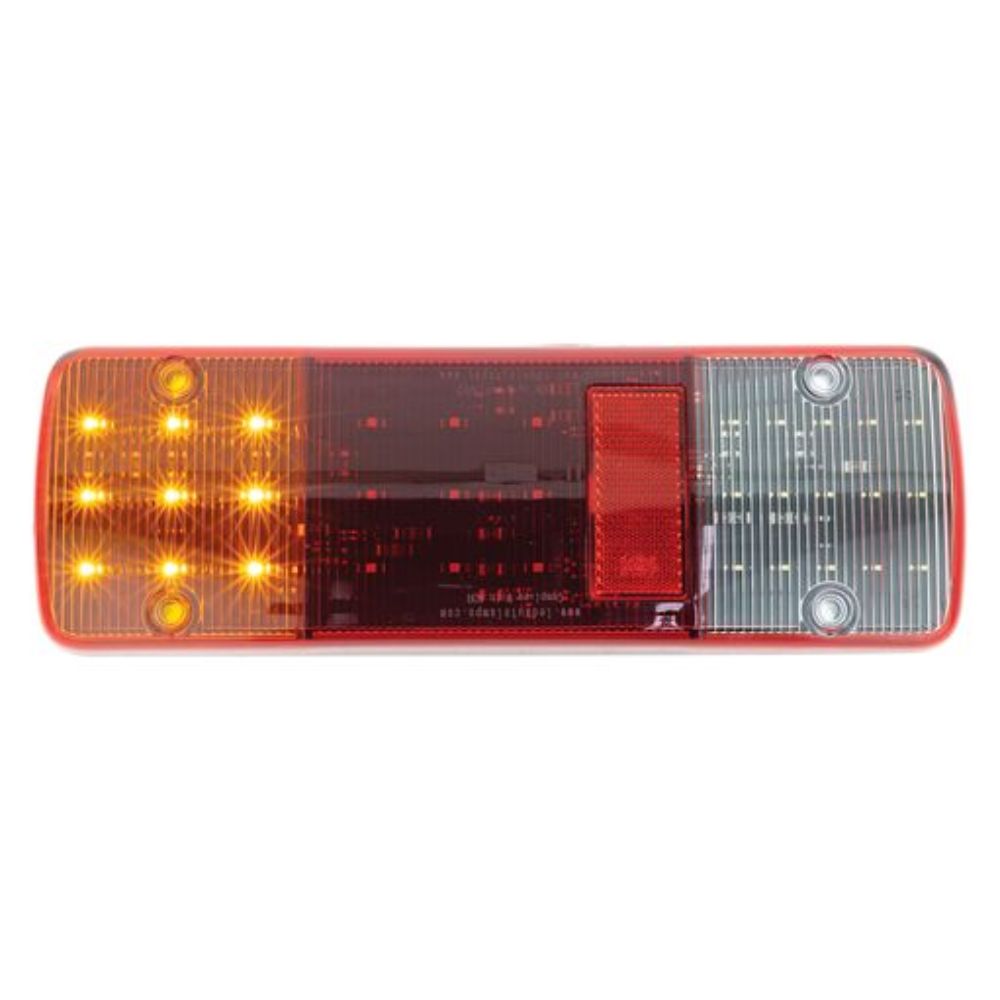

- 9 x High Intensity Red LED's in Stop / Tail, 9 x High Intensity Amber SMD LED's in Indicator Lamp and

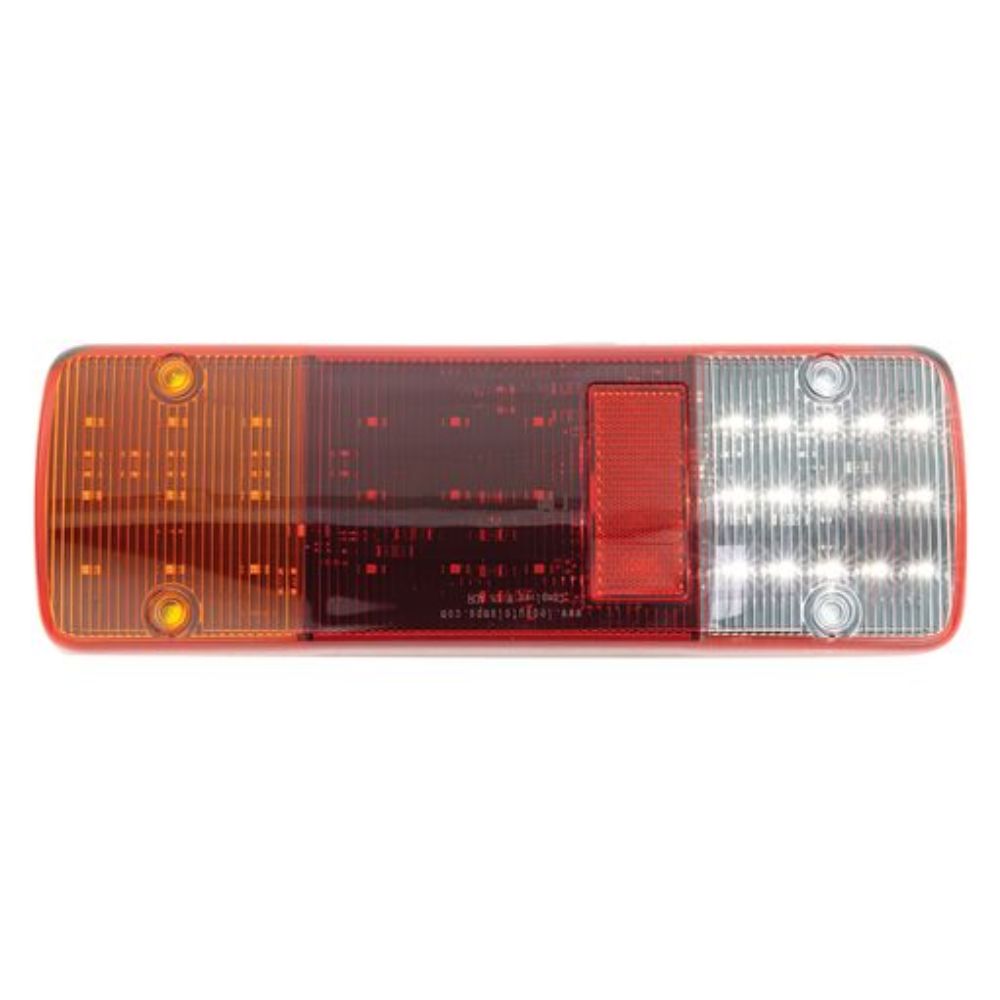

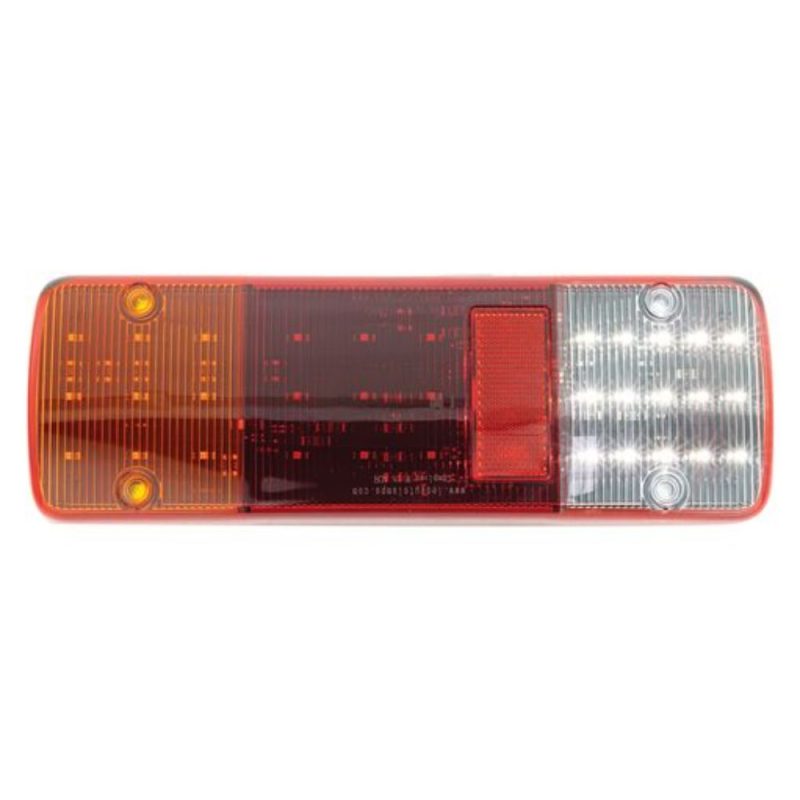

- 15 x High Intensity White SMDLED's in the Reverse Lamp Module
- Black ABS Plastic Housing can be screw mounted through the lens
- Black ABS Plastic Housing with Metal Alloy L Shaped Bracket included
- Surface Mount, low mounting depth for easy installation

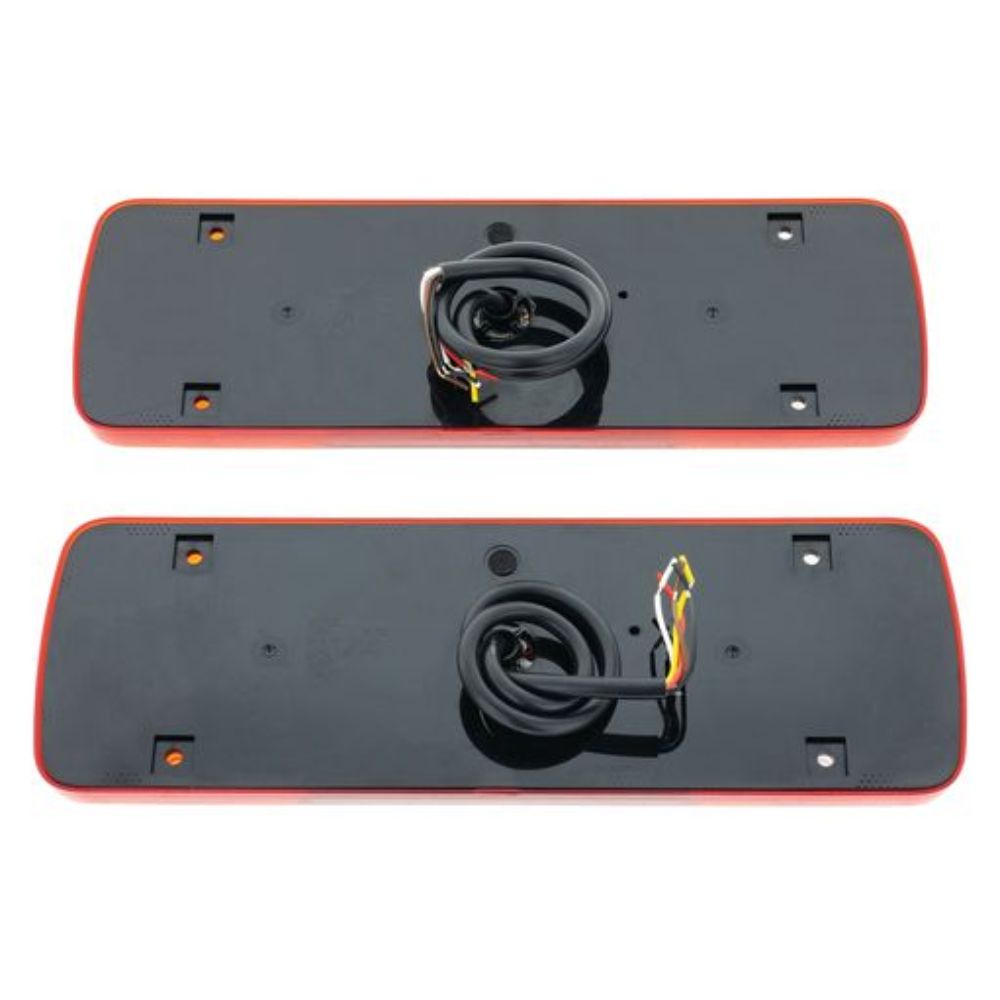

- 400mm Sheathed with 5 wires into Deutsch Plug
- Fully encapsulated circuitry
- Sealed against Dust and Moisture
- 0.16amps at 12 Volt Current Draw for Stop function
- 0.01amps at 12 Volt Current Draw for Tail function
- 0.15amps at 12 Volt Current Draw for Indicator function
- 0.18amps at 12 Volt Current Draw for Reverse function
- 30,000 Hours LED Lifespan
- ADR 49/00 Rear Stop Lamp specifications approved
- ADR 6/00 2A Rear Indicator Lamp specifications approved
- ADR 1/00 Reverse Lamp specifications approved
- ADR 47/00 Reflector specifications approved
- Refer to ADR 13/00 for mounting instructions
- IP67 Rating

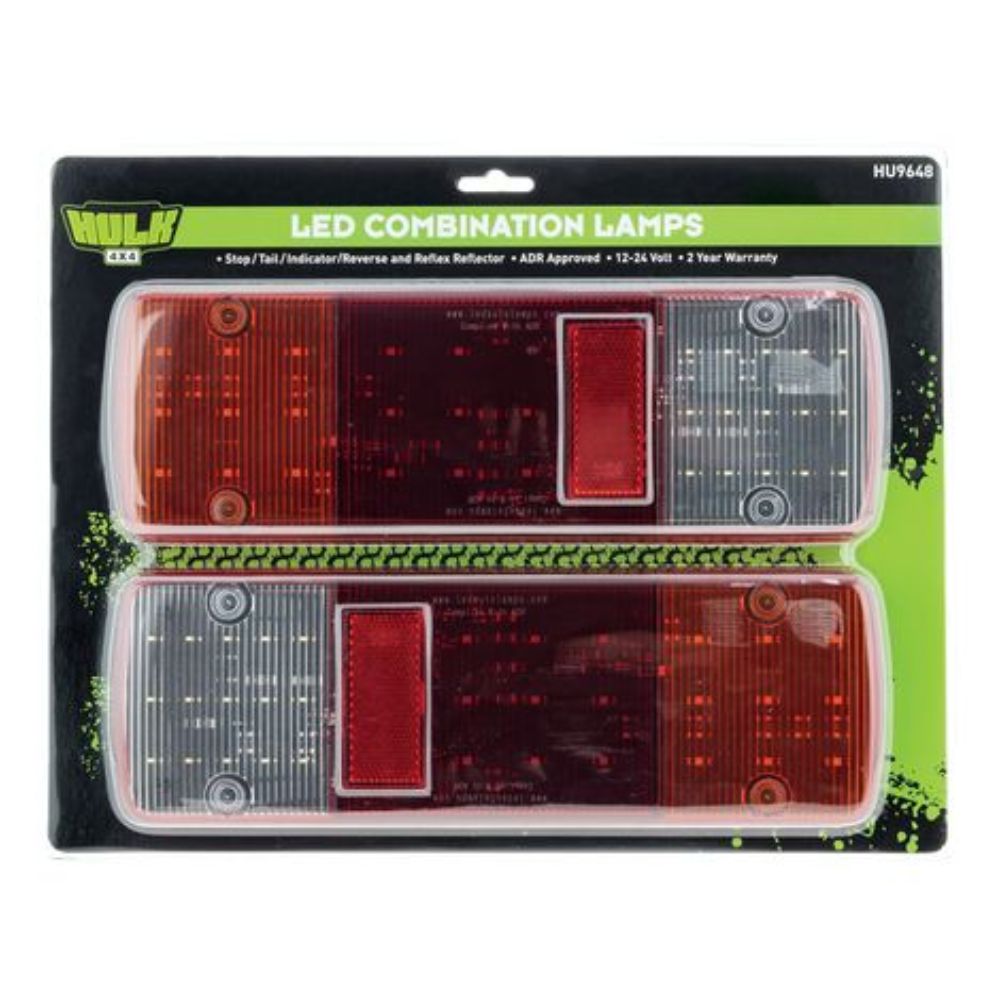

- Blister Qty: 2
- 2 Years Warranty
SKU: HU9648
Additional information
Weight | 1 kg |
---|---|
Dimensions | 25 × 25 × 25 cm |
